Product Details:
Payment & Shipping Terms:
|
Material: | 100%Polyester | Color: | White,yellow,black |
---|---|---|---|
Mesh: | 15-460mesh/inch | Length: | 30-70m/roll |
Width: | 1.15-3.6m | MOQ: | Customized |
High Light: | silk screen mesh roll,silk bolting cloth |

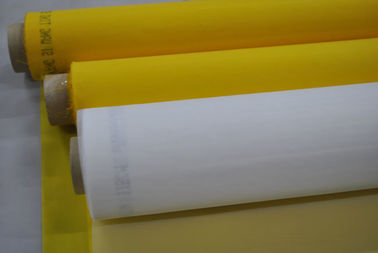

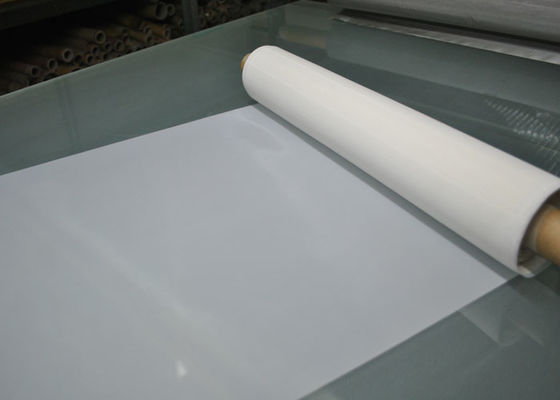

DPP Plain Weave Polyester Silk Screen Printing Mesh For Glass Containers Printing
1.Feature Advantage
And we also served polyester mesh series into bags, cutting disc, round pieces, ribbon and any customized shapes for filtering.
1. Faster turn around time from the screen room to the press room
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Factories for manufacturing
2.Description
Polyester printing mesh using high-precision high-quality monofilament polyester network, with high precision, stable tension and other characteristics, and excellent dimensional stability, making the printing will not deviate, and to ensure a high strength and low elongation, Can greatly extend the service life of the screen.
The special width is available as customer's requirement,and the width is up to 3.6meter.
3.Application
1. Glass Containers Printing
Perfumes,cosmetics and drink bottles are decorated with screen printing methods.
2. Printing Mesh for Textile
Polyester screen printing can transfer thick ink deposits and creat special effects to make itto be optimal process to print high quality commerical garment.
3. Printing Mesh for Glass
Pharmacy glass appliance printing
Home appliance printing.
4.Specificaitons
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
