Product Details:
Payment & Shipping Terms:
|
| Brand Name: | PFM | Mesh: | 15-460mesh/inch |
|---|---|---|---|
| Length: | 30-70m/roll Or Cut Into Pieces. | Width: | 1.15-3.6m |
| Delivery: | 5-10days | Color: | Yellow,white,black |
| Weave: | Plain Weave Or Twill Weave | ||
| High Light: | screen mesh fabric,polyester mesh screen |
||

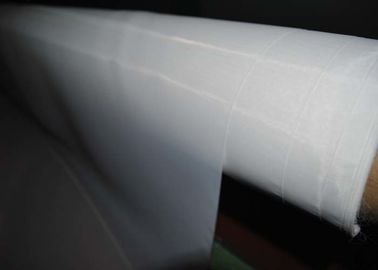

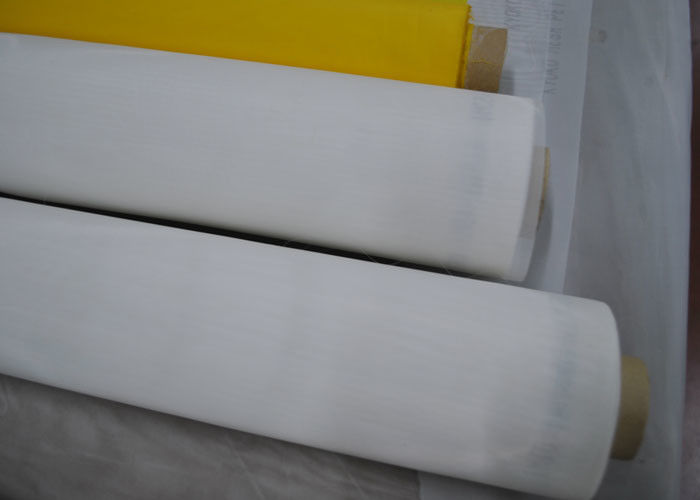

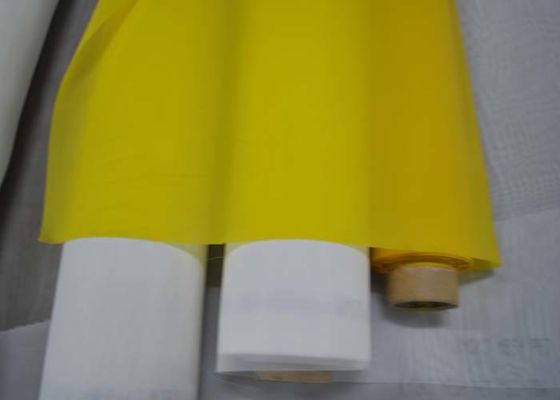

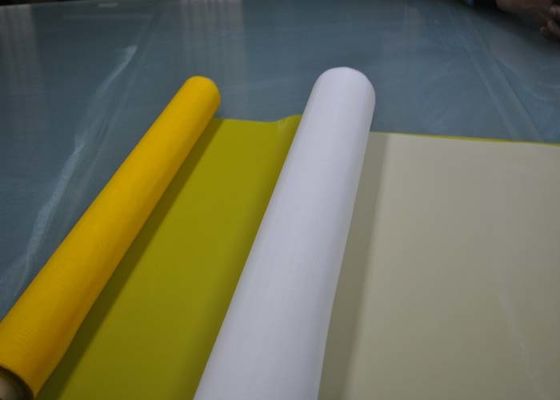

Monofilament Polyester Printing Mesh For T-shirt , Textile , PCB
1.Description
| Specification Brief | 1.Mesh count/inch:15-460 | |
| Width:39"-145" | ||
| Color:white,yellow,black | ||
| Packing | 1.Sample order less than 50meters packed folded then plastic bag and carton case outside | |
| 2.Regular order packed in roll,then carton case or plywood case outside | ||
| Delivery | Delivery Time | 1.Sample order in 3days; |
| 2.Regular orders in 3-5days | ||
| Delivery ways | 1.Sample orders use express company,such as TNT,EMS,DHL,etc | |
| 2.Regular orders by air or by sea | ||
| Payment | T/T,L/C,Paypal,Money Gram,Western Union,Escrow,etc. | |
2.Application
Polyester printing mesh performance is good, high strength, eye hole accurate. Structural strength, good resistance to printing, high mesh accuracy, high dimensional accuracy, good dimensional stability, good resistance to drug performance, good ink performance; pull the net after the stability of the stability, printing accuracy and stability of the structure, can withstand Higher tension, low elongation; long life, in a very small net distance, and ink stripping performance is good; for a variety of large signs, billboards. Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk chemical fiber and other industries.
3.Specification
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
4.Feature advantage
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
.
