High Strength Stainless Steel Wire Mesh For Industray Filtering , Square Hole Size

Name: High Strength Stainless Steel Wire Mesh For Industray Filtering , Square Hole Size
Brand: Anping County Comesh Filter Co.,Ltd
SKU: PFM-Lyd
Price: 79.50 USD
Availability: InStock

Product Details

Place of Origin: Hebei,China

Brand Name: PFM

Certification: SGS

Model Number: PFM-Lyd

Payment & Shipping Terms

Minimum Order Quantity: 1 square meter

Price: Negotiable

Packaging Details: waterproof paper inside,plywood case outside or according to your needs.

Delivery Time: in 3 days for goods in stock

Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade assurance

Supply Ability: 2000 square meter per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    crimped wire mesh, stainless steel mesh cloth


Product Name:	Stainless Steel Wire Mesh	Hole Size:	Square
Length:	Usually 1.02meter*30meter Per Roll	Material:	Ss304,316,316L
Weave Type:	Plain Weave, Twill Weave,dutch Weave,crimped	Feature:	High Strength

Product Name:	Stainless Steel Wire Mesh
Hole Size:	Square
Length:	Usually 1.02meter*30meter Per Roll
Material:	Ss304,316,316L
Weave Type:	Plain Weave, Twill Weave,dutch Weave,crimped
Feature:	High Strength

Product Description

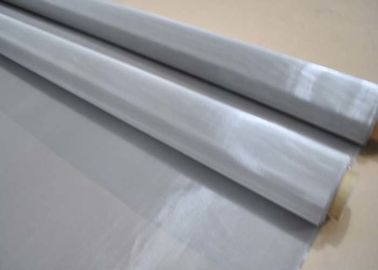

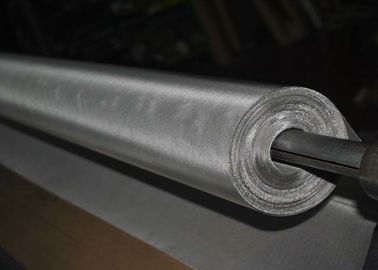

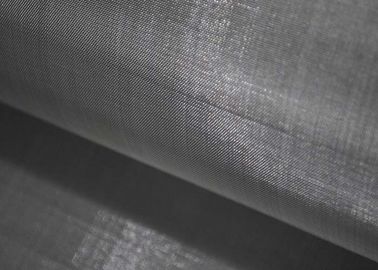

Free Sample High Strength Stainless Steel Wire Mesh For Industray Filtering

Decription of stainless steel wire mesh:

Material: S. S 201,202,304, 304L, 316, 316L, 430, 321. Etc.

Mesh:1-1500mesh

Diameter:0.02-3.0mm

Weave types: Plain weave, twill weave, Dutch weave, Five Heddle weave,crimped mesh

Features of stainless steel wire mesh

Washability:Easy to clean,especially suitable for backwashing
Tractability: suitable for cutting, bending, stamping, drawing, welding and other processes.
Stability: Because there are two layers to protect the screen which make filters is not easily to deform.
Filtering capabilities:Filtration range of 1μ-200μ, has a reliable filter performance
Resist high temperature:480 °C can withstand high temperatures.
Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
High mechanical strength and compressive strength

Specifications of stainless steel wire mesh:

Stainless Steel Wire Mesh Specification
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(kg/Square meter)
1×1	0.080	2.03	0.920	23.37	92.0	2.0
2×2	0.063	1.6	0.437	11.1	87.4	2.5
3×3	0.054	1.37	0.279	7.09	83.8	2.7
4×4	0.047	1.2	0.203	5.16	81.2	2.7
5×5	0.041	1.04	0.159	4.04	79.5	2.6
10×10	0.024	0.6	0.076	1.94	74.9	1.8
12×12	0.020	0.5	0.064	1.62	75.9	1.5
14×14	0.020	0.5	0.052	1.314	71.9	1.75
16×16	0.018	0.45	0.045	1.137	71.2	1.6
18×18	0.016	0.4	0.0398	1.01	69.4	1.4
20×20	0.009	0.24	0.041	1.03	76.0	0.57
20×20	0.012	0.3	0.0382	0.97	72.2	0.9
30×30	0.012	0.3	0.0215	0.547	63.9	1.35
30×30	0.0094	0.24	0.0243	0.62	72.1	0.84
40×40	0.0098	0.25	0.015	0.385	36.74	1.25
50×50	0.0079	0.2	0.0121	0.308	36.7	1.0
60×60	0.0047	0.12	0.012	0.303	71.6	0.42
60×60	0.0059	0.15	0.0107	0.273	64.5	0.65
80×80	0.0047	0.12	0.0078	0.198	38.7	0.58
80×80	0.0055	0.14	0.0069	0.177	45.5	0.76
100×100	0.0039	0.1	0.006	0.154	59.8	0.50
100×100	0.0043	0.11	0.0056	0.144	55.1	0.60
120×120	0.0027	0.07	0.0056	0.142	67.7	0.29
120×120	0.0031	0.08	0.0052	0.132	38.7	0.38
150×150	0.0024	0.06	0.0043	0.109	41.6	0.27
165×165	0.0018	0.45	0.0043	0.109	50	0.167
180×180	0.0019	0.05	0.0036	0.091	64.5	0.22
180×180	0.0023	0.06	0.0032	0.081	57.4	0.32
200×200	0.0019	0.05	0.003	0.077	60.6	0.24
200×200	0.0024	0.06	0.0026	0.067	52.7	0.35
250×250	0.0012	0.03	0.0028	0.072	49.8	0.11
250×250	0.0016	0.04	0.0024	0.062	36.9	0.20
270×270	0.0014	0.035	0.0023	0.059	60	0.16
270×270	0.0016	0.04	0.0021	0.054	57.4	0.21
300×300	0.0012	0.03	0.0022	0.055	57	0.13
325×325	0.0014	0.035	0.0017	0.0432	55.3	0.20
400×400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500×500	0.0009	0.025	0.001	0.0258	50.7	0.15
635×635	0.0007	0.018	0.0008	0.022	55	0.10

Applications of stainless steel wire mesh:

with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

High Strength Stainless Steel Wire Mesh For Industray Filtering , Square Hole Size

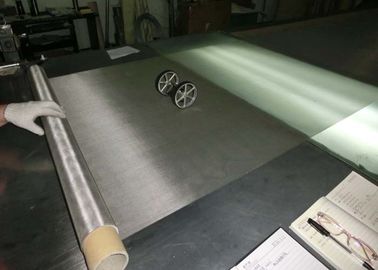

Packing of stainless steel wire mesh:

High Strength Stainless Steel Wire Mesh For Industray Filtering , Square Hole Size
