High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color

High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color
High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color

Large Image :  High Strengthscreen Printing Mesh 165T FDA Certification , Yellow Color

Product Details:
Place of Origin: Hebei China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and carton case outside,or cut into small pieces and plastic bag.
Delivery Time: 3-10days
Payment Terms: L/C, D/A, T/T, Western Union, ,Trade assurance,Paypal
Supply Ability: 3000meters per week
Detailed Product Description
Material: Polyester Mesh: 40-550mesh/inch
Length: 30-70m/roll Or Cut Into Pieces. Width: 1.15-3.6m
Delivery: 5-10days Color: Yellow
Weave: Plain Weave Or Twill Weave Aperture: 23-600micron
High Light:

polyester mesh fabric

,

polyester mesh screen

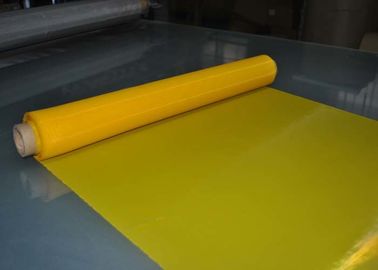

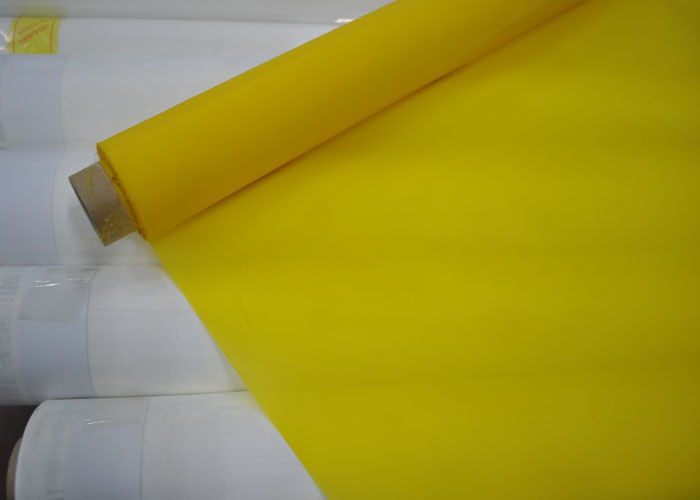

High Strength Yellow 165T Polyester Printing Mesh With FDA Certification For Printing









1.Description

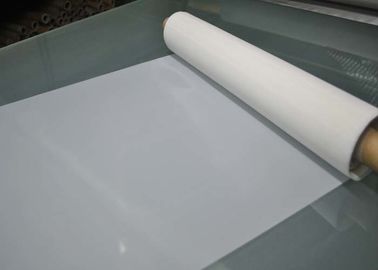

White mesh is the more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.



2.Application



Silk screen performance is good, high strength, eye hole accurate. Structural strength, good resistance to printing, high mesh accuracy, high dimensional accuracy, good dimensional stability, good resistance to drug performance, good ink performance; pull the net after the stability of the stability, printing accuracy and stability of the structure, can withstand Higher tension, low elongation; long life, in a very small net distance, and ink stripping performance is good; for a variety of large signs, billboards. Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk chemical fiber and other industries



3.Specification



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22





4.Feature advantage

  • Solvent resistance
  • High temperature resistance
  • Water resistance
  • Chemical resistance
  • Acid resistance
  • By the external pressure is large, its physical properties and stability, small stretch
  • Polyester wire mesh in addition to the advantages of nylon screen printing, but also for printing the size of the requirements of high precision printed circuit boards and so on.
