White Or Yellow 64T Polyester Screen Printing Mesh For Glass Printing

Large Image : White Or Yellow 64T Polyester Screen Printing Mesh For Glass Printing

Product Details:

Place of Origin:	Hbei,China
Brand Name:	PFM
Certification:	FDA
Model Number:	PFM-Lyd

Payment & Shipping Terms:

Minimum Order Quantity:	1 sqm
Price:	Negotiable
Packaging Details:	Plastic bag inside on one roll and carton case outside or cut into small piece and plastic bag.
Delivery Time:	5-10days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Contact Now

Detailed Product Description

Material:	Polyester	Thread Diameter:	30-150micron
Mesh/inch:	40-600mesh/inch	Technical:	Weave
Weave Way:	Plain Or Twill	Delivery:	Within 3-7days
High Light:	screen printing mesh roll , monofilament polyester mesh

White Or Yellow 64T Polyester Screen Printing Mesh For Glass Printing

1.Description

With high quality domestic and imported raw material,advanced weaving looms and test instruments,we can supply the first class and nylon screens.

The spicial width is available as customer's requirement,and the width is up to 3.6meter.

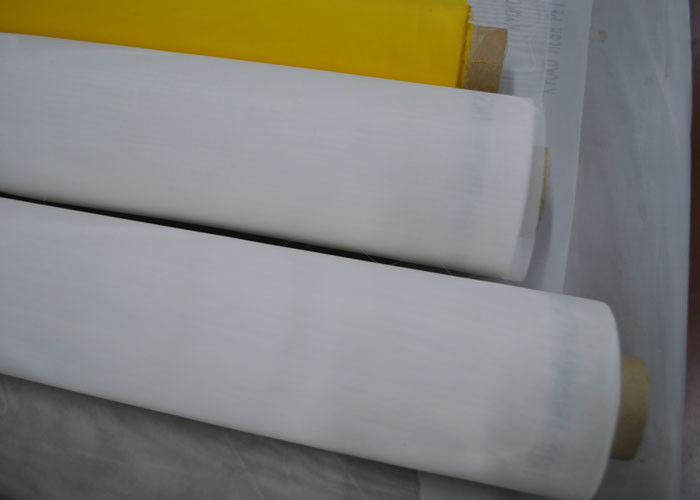

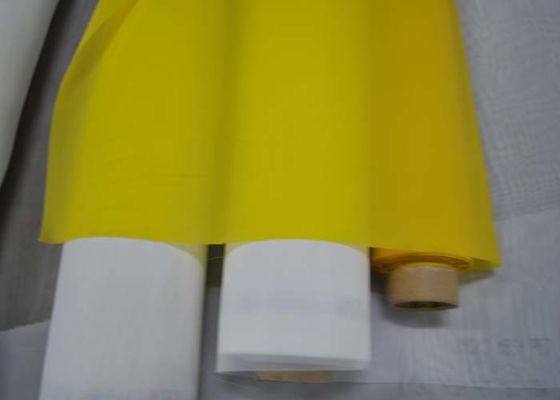

The difference between white and yellow

White is generally about 200 head, yellow is more than 250 head, white in the copy is more refraction, will affect the quality of the screen, so the high mesh fine screen are yellow yarn.
The higher the mesh, the finer the net, the thicker it is. Printing ink selection of high numbers, printing paste generally selected 100 mesh, or 80 mesh

2.Application

The products are widely used in electronics, textiles, ceramics, glass screen printing industries such as printing plate and in the field of aviation, aerospace, petrochemical and other high-tech solution filter, etc

3 Specification

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

4.Feature advantage

Screen printing can transfer thick ink deposits and creat special effects,so 30mesh/inch to 300mesh/inch silk screen printing mesh is widely used to print high quality commercial garments.
Any ink deposits and any ink system are possible with screen printing,so silk screen printing mesh is widely used to print knitted fabric,blankets,silk even coarse denim.
Screen printing offers many superiorities of ink transparency,ink briliance,various decorative pattern choice,and fast production cycle time,so silk screen printing mesh is perferred for CDs and DVDs printing process.
