Product Details:
Payment & Shipping Terms:
|
Material: | Polyester | Mesh/inch: | 40-600mesh/inch |
---|---|---|---|
Style: | Plain Weave | Delivery: | Within 3-7days |
Shipping Port: | Tianjin Or Beijing | Supply Type: | In Stock |
High Light: | screen printing fabric mesh,monofilament polyester mesh |

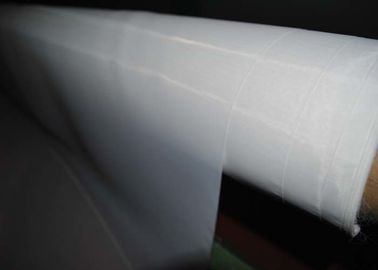

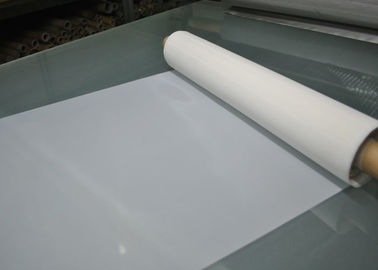

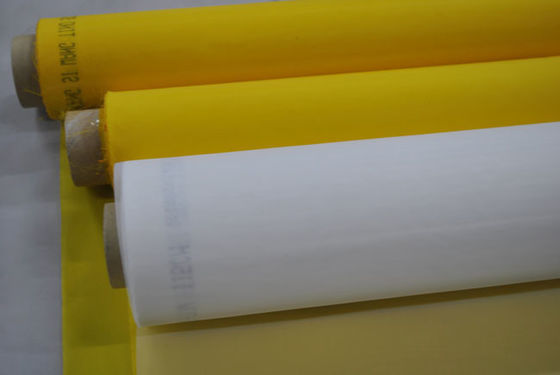

90T 63 Micron Monofilament Polyester Screen Printing Mesh With Yellow
1.Description
Polyester screen printing mesh | |
Weave Style | Plain Weave |
Material | 100% polyester |
Monofilament Style | Yes |
Width | 0.6-3.65m |
Mesh Count | 18-420 mesh/inch |
Thread Diameter | 27-350 micron |
Mesh Opening | 25-1068 micron |
Thickness | 46-693 micron |
2.Application
Used in textile printing, high-textile printing, t-shirt printingused to make glass and ceramic screen mesh
printed electronic display screen.
3 Specification
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
4.Feature advantage
The common packaging:
