Product Details:
Payment & Shipping Terms:
|
Product Name: | 45 Inch FDA Certificate 140T Polyester Bolting Cloth 355 Mesh For Textile Printing | Hot Search: | Screen Printing Mesh Fabric |
---|---|---|---|
Material: | PET | Application: | Silk Screen Printing For Textile Printing |
Width: | 45 INCH | Length: | 30-70meter Per Roll |
Highlight: | bolting cloth mesh,tensile bolt cloth |

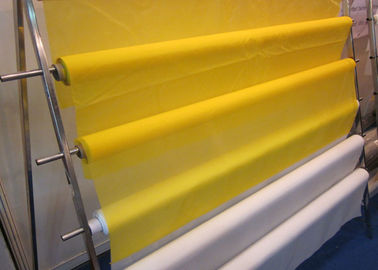

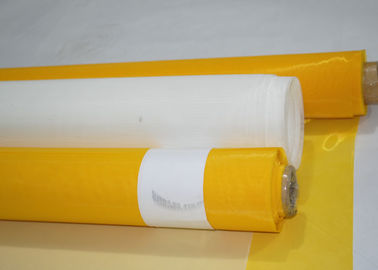

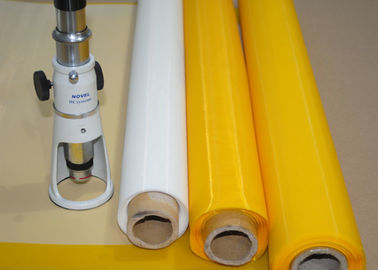

45 Inch FDA Certificate 140T Polyester Bolting Cloth 355 Mesh For Textile Printing
Our factory introduction
Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester Bolting Cloth production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.
Description
name |
45 Inch FDA Certificate 140T Polyester Bolting Cloth 355 Mesh For Textile Printing |
mesh count per cm | 140 |
thread diameter | 31 |
color | white / yellow |
opening size | 40 micron |
width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
Features :
1. Polyester Silk Screen Printing Mesh with high quality domestic and imported raw material,advanced weaving looms and test instruments,we can supply the first class polyester
2.The special width is available as customer's requirement,and the width is up to 3.65 meter.
3.Weaving Type:Plain
4.Water Resistance.
5.The physical properties are stable under high pressure
Application of Polyester Bolting Cloth
Widely used in filtering, ,textile printing and dyeing, printing plate, electronic printing, PVC printing, glass printing, ceramic printing and other industries.
Specification of Polyester Bolting Cloth
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 100 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
305 | 120 | 31 | 52 | 35 | 49 | 17 | 21-23 |
305 | 120 | 34 | 49 | 30 | 55 | 16 | 22-24 |
355 | 140 | 31 | 40 | 26 | 48 | 12 | 21-23 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
380 | 150 | 34 | 33 | 13 | 55 | 6.5 | 22-24 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
MOQ and sample of Polyester Bolting Cloth:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
Tips of Best Polyester Bolting Cloth for work:
Production processing of Polyester Bolting Cloth:
Packing of Polyester Bolting Cloth:
Service of Polyester Bolting Cloth
Pre sale service:
After sale service
