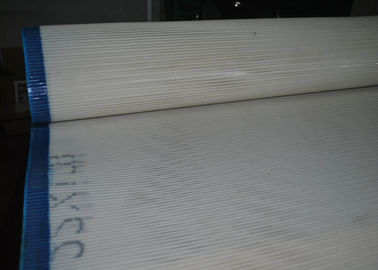

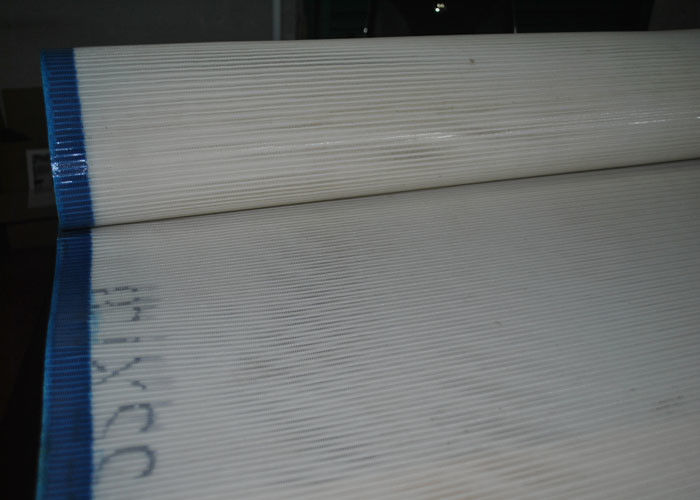

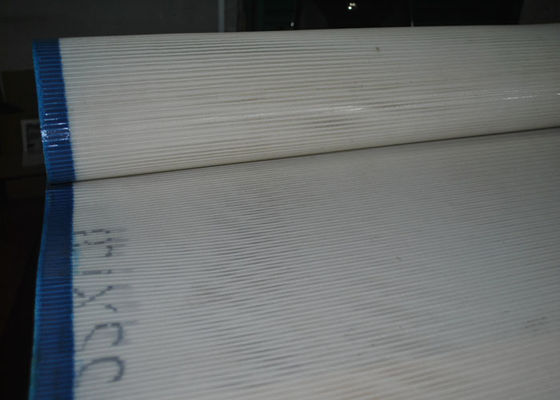

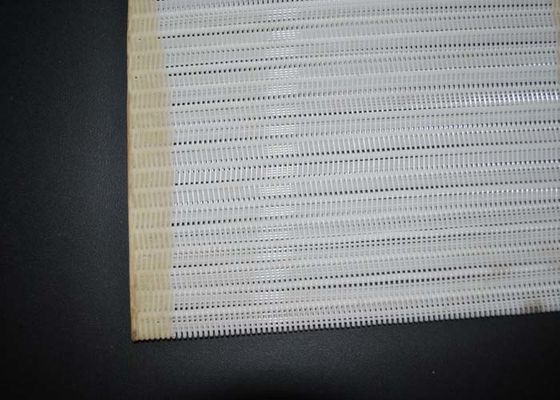

Heat Resistance 100% Polyester Mesh Belt For Conveyor Dryer , White Color

Heat Resistance 100% Polyester Mesh Belt For Conveyor Dryer , White Color
Heat Resistance 100% Polyester Mesh Belt For Conveyor Dryer , White Color Heat Resistance 100% Polyester Mesh Belt For Conveyor Dryer , White Color

Large Image :  Heat Resistance 100% Polyester Mesh Belt For Conveyor Dryer , White Color

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inside And Plywood Case Outside Or According To The Customer's Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, , ,Paypal
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Marterail: 100%Polyester Color: White,blue,red.
Brand Name: PFM Hot Search: Polyester Dryer Belt
Weave Type: Small Loop,medium Loop,large Loop Usage: Filter Belt
High Light:

polyester mesh fabric


mesh material fabric

Heat-resistance 100%Polyester Dryer Screen For Conveyor Dryer Belt






      Polyester spiral screen polyester spiral mesh polyester spiral fabric polyester spiral dryer fabric
We produce polyester spiral dryer fabric made from first-class monofilament, in reference to Finland Standard, has the characteristics of stable property and long work time.




  1. polyester spiral dryer screen is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
  2. polyester spiral dryer screen are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
  3. polyester spiral dryer screen are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.




Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving Type Model Thread Diameter Air permeability
(mm) (m3/m2h)
Warp Weft
Large Loop 4070 0.9 1.1 20000±500
Medium Loop 3868 0.7 0.9 18500±500
Small Loop 3252 0.52 0.7 15000±500




1. our spiral dryer fabrics have a character of acid resistance;alkali resistance;abrasion resistance;thermostability and long service life's several times as woven felt; canvas and general dryer fabrics.


2. the surface of our spiral dryer fabric is very smooth, also have good air permeability and bursting strength, with high efficiency of heat transfer. so it can save energy for our customers.


3. It's easy to install, without any moulage in the seam. the intensity can reach 100% of the fabrics.


About Our Company:


      Anping County PFM Screen Co.,ltd is a professional manufacturer of polyester printing mesh,polyester filter belt and stainless steel mesh.

       Our factory is located in Anping County-the famous Wire Mesh Land of China,with a land area of 40,000 square meters,a construction area of 13,000 square meters.PFM factory has 83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50 sets Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.

     PFM is not only professional in field of polyester mesh and stainless steel mesh,but also in wire mesh filters.our strong R&D capability(56 engineers and technicians) enables us to innovate almost everyday.So the customized orders are available.
