Product Details:
Payment & Shipping Terms:
|
Name: | Small Loop Polyester Dryer Screen Conveyor Belt Mesh For Paper Making | Color: | White,blue,red. |
---|---|---|---|
Type: | Spiral | Hot Search: | Polyester Dryer Belt |
Weave Type: | Small Loop,medium Loop,large Loop | Packing: | Plastic Bag Or Plywood Case |
Highlight: | stretch mesh fabric,polyester mesh fabric |

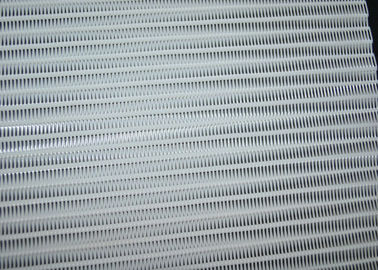

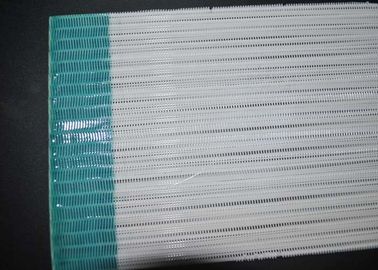

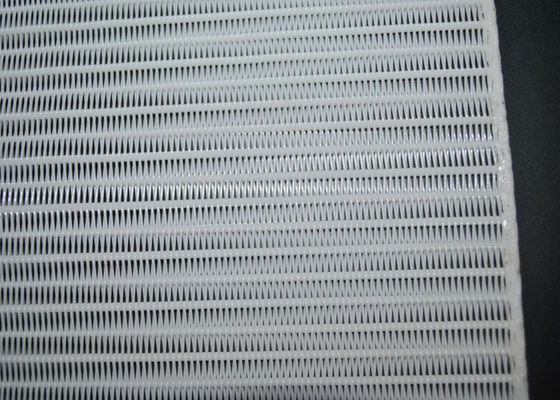

Small Loop Polyester Dryer Screen Conveyor Belt Mesh For Paper Making
Polyester Dryer Screen Specification:
Polyester Spiral Dryer Conveyor Wire Mesh Belt | ||||
Weaving Type | Model | Thread Diameter | Air permeability | |
(mm) | (m3/m2h) | |||
Warp | Weft | |||
Large Loop | 4070 | 0.9 | 1.1 | 20000±500 |
Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 |
Small Loop | 3252 | 0.52 | 0.7 | 15000±500 |
Polyester Dryer Screen Description:
Polyester spiral dryer belt is using the latest international in the ninety s made of nonwoven technology and equipment production, is currently the world's one of the most advanced drying, filtering material. I plant the production of polyester spiral stem network is made of high quality high viscosity polyester chip processing wire, after forming, weaving, finishing, finalize the design.
Polyester Dryer Screen Application:
1. Polyester spiral dryer fabric is mainly used in papermaking industry,such as producing carboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter etc.
2. Polyester spiral dryer fabric can instead of papermaking machine dry blanket,canvas.
3. It is also used in colliery,food and medicine as conveyor belt.
Polyester Dryer Screen Features:
1. Stable property
2. Acid,alkali and chemical resistance
3. Heat resistance under 180 degrees
4. Wear resistance,long service life
5. Easy cleaning,easy installment
Polyester Dryer Screen Packing:
Plastic film or air bubble film inside,wooden case or plywood case outside,or according to the customer's request.
About Our Company:
Anping County PFM Screen Co.,ltd is a professional manufacturer of polyester printing mesh,polyester filter belt and stainless steel mesh.
Our factory is located in Anping County-the famous Wire Mesh Land of China,with a land area of 40,000 square meters,a construction area of 13,000 square meters.PFM factory has 83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50 sets Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.
PFM is not only professional in field of polyester mesh and stainless steel mesh,but also in wire mesh filters.our strong R&D capability(56 engineers and technicians) enables us to innovate almost everyday.So the customized orders are available.
