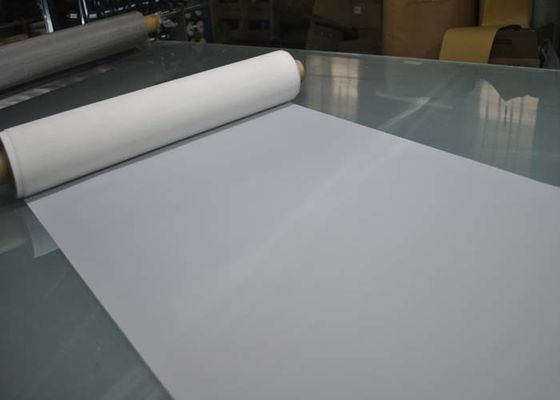

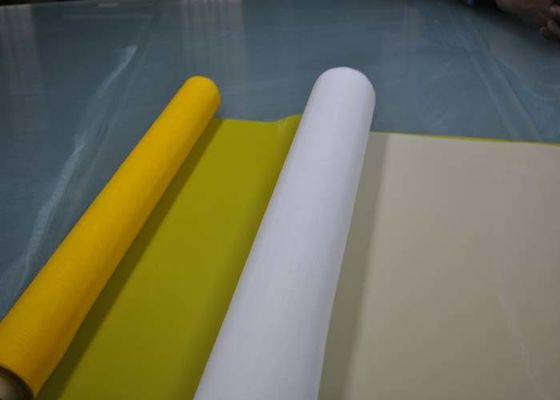

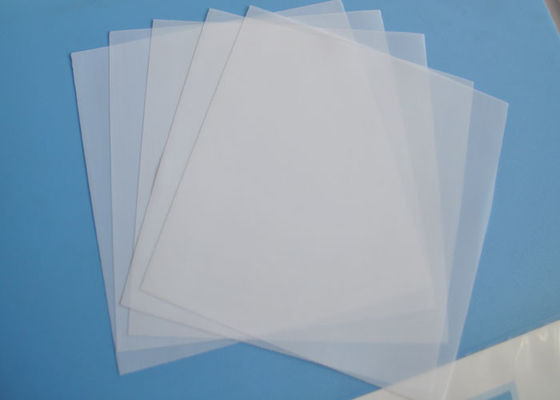

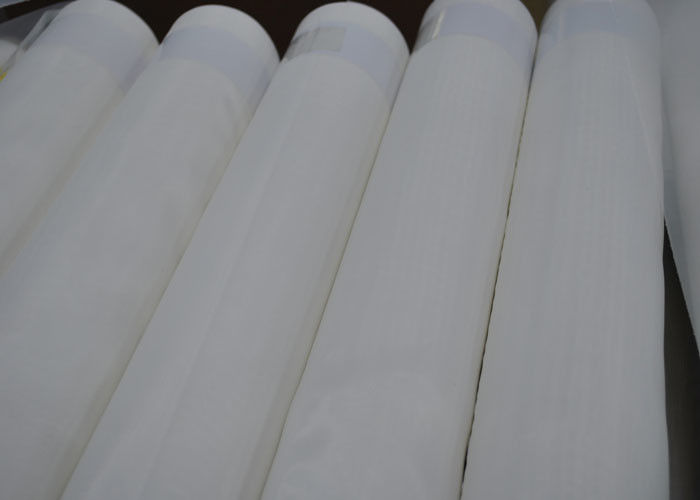

Acid Resistance Silk Screen Printing Mesh 30-150 Micron Low Elongation

Large Image : Acid Resistance Silk Screen Printing Mesh 30-150 Micron Low Elongation

Product Details:

Place of Origin:	Hebei,China
Brand Name:	PFM
Certification:	FDA
Model Number:	PFM-Lyd

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Plastic bag inside on one roll and carton case outside.Or cut into small pieces and plastic bag.
Delivery Time:	5-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meter per week

Contact Now

Detailed Product Description

Material:	100%Polyester	Color:	White,yellow,black
Thread Diameter:	30-150micron	Mesh:	40-400mesh/inch
Length:	30-70m/roll	Width:	1.15-3.6m
Sample:	Free	Weave:	Plain Weave,twill Weave
High Light:	silk screen mesh roll , silk bolting cloth

High Precision White Polyester Silk Screen Printing Mesh Used For Textile Printing

1. Feature Advantage

1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy

2. Description

Material:100% polyester
Width:105cm,115m,127cm,136cm,145cm,157cm,165cm,188cm,220cm,360cm
Color:white,yellow,black
Tensile strength:25N/cm-85N/cm

3. Application

Polyester silk screen printing mesh is woven from yarn that is extruded from heated polyester into a single strand. Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.

3. Specificaitons

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22
