Product Details
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms
Minimum Order Quantity: 1meter
Price: negotiable
Packaging Details: plastic bag inside,2 to 10 rolls in one carton
Delivery Time: in 7 working days
Payment Terms: T/T, Western Union, ,paypal or trade assurance
Supply Ability: 8000 meter per month
Material: |
100% Polyester Monofilament Thread |
Application: |
T-shirt Printing |
Features: |
Low Elasticity, |
Mesh: |
200mesh/inch |
Length: |
30m/roll |
Material: |
100% Polyester Monofilament Thread |
Application: |
T-shirt Printing |
Features: |
Low Elasticity, |
Mesh: |
200mesh/inch |
Length: |
30m/roll |

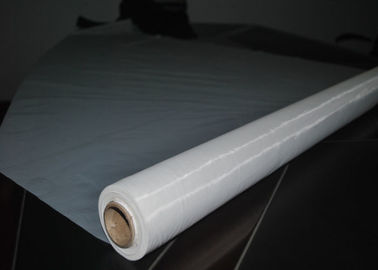

High Tensile White Silk Screen Printing Mesh For T-Shirt Printing
Description of white silk screen printing
Mesh:30-250mesh/inch
White in the copy of the more refraction
White silk screen printing is more suitable print slurry than yellow silk screen printing mesh
Weave way:Plain weave.it is more high accuracy than yellow mesh
Features of White Silk Screen Printing Mesh:
① screen printing can use a variety of types of ink. Namely: oily, water-based, synthetic resin emulsion type, powder and other types of ink.
② layout soft. Screen printing is soft and has a certain degree of flexibility is not only suitable for paper and cloth and other soft items on the printing, but also suitable for printing on hard objects, such as: glass, ceramics and so on.
③ screen printing press force is small. Due to the small pressure used in printing, it is also suitable for printing on fragile items.
Application of Silk Screen Printing Mesh
Specification of Silk Screen Printing mesh
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
| 150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 305 | 120 | 31 | 52 | 35 | 49 | 17 | 21-23 |
| 305 | 120 | 34 | 49 | 30 | 55 | 16 | 22-24 |
| 355 | 140 | 31 | 40 | 26 | 48 | 12 | 21-23 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 380 | 150 | 34 | 33 | 13 | 55 | 6.5 | 22-24 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
How many screen printing methods?
Screen printing is usually two kinds, namely manual printing and mechanical printing.
Manual printing is from the continued paper to the paper, the plate on the move, scraping scraping are manual operation.
Mechanical printing means that the printing process is done by mechanical action. Which is divided into semi-automatic and automatic printing, semi-automatic refers to the substrate into and out by the manual operation, printing by mechanical completion; automatic refers to the entire printing process by mechanical completion.

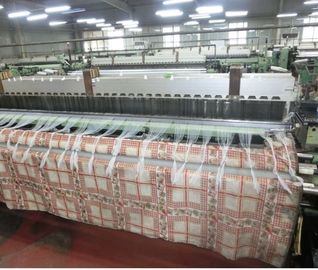

Production processing of Silk Screen Printing Mesh:
![]()

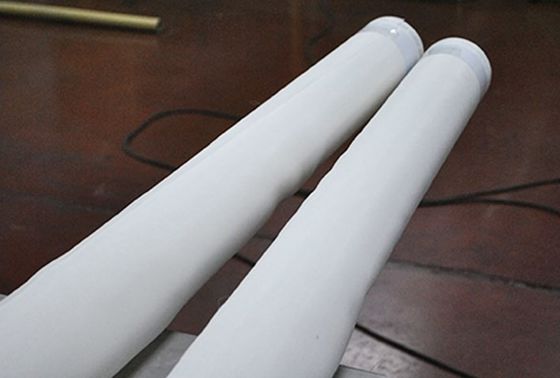

Packing of Silk Screen Printing Mesh:
Service of Silk Screen Printing Mesh
Pre sale service:
After sale service
![]()
