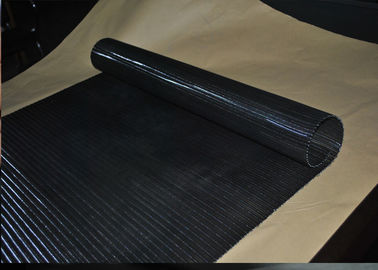

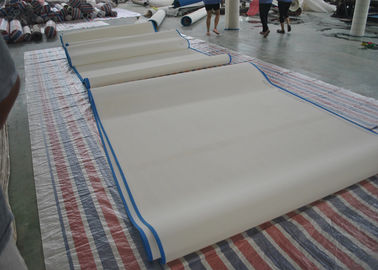

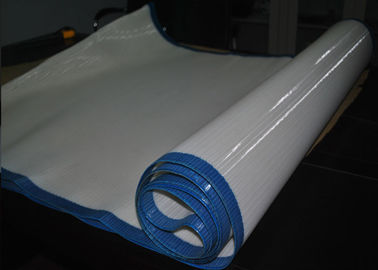

Flat Surface 100% Polyester Mesh Belt For Sludge Dewatering , FDA Approved

Large Image : Flat Surface 100% Polyester Mesh Belt For Sludge Dewatering , FDA Approved

Product Details:

Place of Origin:	Hebei,China
Brand Name:	PFM
Certification:	FDA
Model Number:	PFM-LIS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meter
Price:	Negotiable
Packaging Details:	Plastic Bag Inaide And Plywood Case Outside Or According To Your Needs.
Delivery Time:	5-10 Working Days
Payment Terms:	L/C, T/T, Western Union, MoneyGram,Paypal,Trade Assurance
Supply Ability:	2000 Square Meters Per Quarter

Contact Now

Detailed Product Description

Material:	100%Polyester	Weave Type:	Plain Weave
Color:	White,Blue,Red,other Colors On Request	Name:	100%Polyester Plain Weave Mesh Belt For Conveyor
Hot Search:	Polyester Mesh Belt	Quality:	High Quality
High Light:	mesh material fabric , plain weave mesh

100%Polyester Mesh Belt Plain Weave Mesh For Water Tteatment

100%Polyester Mesh Belt Plain Weave Mesh For Water Treatment Description:

Polyester mesh is one of the world's major drying and filtering materials. Therefore, it is widely used in the field of papermaking. It is an indispensable and consumptive dehydration equipment in the papermaking industry. It is also used in the field of papermaking.

100%Polyester Mesh Belt Plain Weave Mesh For Water Treatment Application:

The 2-shed and 3-shed plain woven fabric is mainly used in special lines, such as paper pulps making, Sulplate pulp packing and pulp, fiberboard plabts as well as colliery, food and medicine as conveyor belt.

Filtering and separating in the colliery, food,salt and mine industry
Pulp making,Sulplate pulp packing and cardboard pulp
Fiberboard plants
Medicine,printing,drying industry as conveyor belt
Pharmacy,environment protection
Process hides,shoe-making,clothing,ceramics etc as a conveyor belt

100%Polyester Mesh Belt Plain Weave Mesh For Water Treatment Specification:

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	5802	0.75	0.8	4.7-5	4.8-5	940	20000
	5102	1	1	4.7-5.2	4.3-5	1600	15000
	6702	0.7	0.7	8	7	1600	11000
	7102	0.7	1	6.6-7	4.3-4.6	1100	15000
	8552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	9452	0.45	0.45	10	8.6	1600	16000
	9502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

100%Polyester Mesh Belt Plain Weave Mesh For Water Treatment Advantage:

Hard-wearing
Flat surface
Good air permeability
Stable property against heat and moisture
Low thermal shrinking
Less elongation at heat
Long service life
Waterproof
Resistance under 180 degrees
Easy to clean
Unique structure help the solid granule get easily off the belt after filtration
Tear-resistance, shrink-resistance and abrasion resistance
Safe for food processing applications
