Plain Weave Polyester Mesh Belt Under 180 Degree With High Temperature

Brand Name:	PFM
Model Number:	PFM-LIS
MOQ:	1 Square Meter
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade Assurance
Supply Ability:	2000 Square Meters Per Quarter

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

FDA

Material:

100%Polyester

Weave Type:

Plain Weave

Color:

White

Name:

Polyester Mesh Belt

Delivery:

Within 10days

Type:

2-shed

Packaging Details:

Plastic Bag Inaide And Plywood Case Outside Or According To Your Needs.

Highlight:

mesh material fabric

woven mesh fabric

Product Description

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Description:

Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric,which widely used in special lines,such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt.

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Application:

The 2-shed and 3-shed plain woven fabric is mainly used in special lines, such as paper pulps making, Sulplate pulp packing and pulp, fiberboard plabts as well as colliery, food and medicine as conveyor belt.

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Specification:

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	05802	0.75	0.8	4.7-5	4.8-5	940	20000
	05102	1	1	4.7-5.2	4.3-5	1600	15000
	06702	0.7	0.7	8	7	1600	11000
	07102	0.7	1	6.6-7	4.3-4.6	1100	15000
	08552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	09452	0.45	0.45	10	8.6	1600	16000
	09502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree aperture:

400micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,

2500micron,3000micron

Size of polyester plain weave mesh belt

Standard widths in stock:1.0m-6.0m;length is available as the request

Edge of polyester plain weave mesh belt

	edges sealed by glue
	edges sealed by mesh
	edges sealed by heat resistant fabric

Shipping of polyester plain weave mesh belt

For small quantity, shipped by courier.
For large quantity, shiped by air or by sea.
Tracking number will be emailed to you after order has been shipped.
If you have forwarder in China, we can send to your forwarder for free.

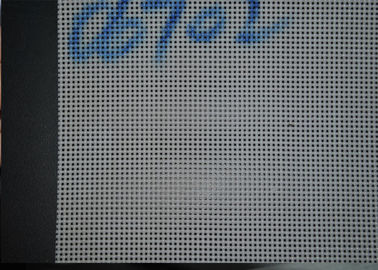

Plain Weave Polyester Mesh Belt Under 180 Degree With High Temperature 3
