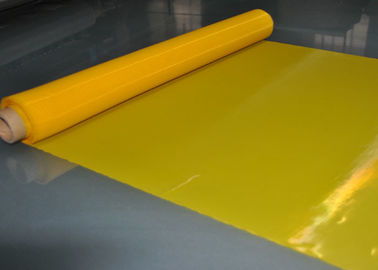

Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron

Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron
Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron

Large Image :  Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS FDA
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 30meter
Price: negotiable
Packaging Details: plastic bag inside,2 to 10 rolls in one carton
Delivery Time: in 7 working days
Payment Terms: T/T, Western Union, ,paypal or trade assurance
Supply Ability: 8000 meter per month
Detailed Product Description
Product Name: Yellow 50" 91 Micron 48 Thread Polyester Printing Mesh 72T For Printed Circuit Boards Printing Hot Search: Polyester Screen Printing Mesh
Application: Screen Printing For PCB Width: 50"
Opening Size: 91 Micron Thread Diameter: 48 Micron
High Light:

polyester mesh fabric

,

polyester mesh screen

Yellow 50" 91 micron 48 Thread Polyester Printing Mesh 72T For Printed Circuit Boards Printing



Features of Polyester Printing Mesh:

  • High tension threshold and breaking point
  • high modulus,low elongation monofilament polyester yarn
  • Resist to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic
  • No surface treatment



Application of Polyester Printing Mesh



  • Textile printing
  • T-shirt printing
  • ceramic printing
  • glass printing
  • PCB printing industry.

Description



name

91 micron 72T Polyester Printing Mesh Fabric For Ceramic Printing

mesh count per cm 72
thread diameter 48
color white / yellow
opening size 91 micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.









Specification of Polyester Printing mesh



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 48 70 138 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 54 64 121 44 100 44 26-31
150 61 64 100 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
305 120 31 52 35 49 17 21-23
305 120 34 49 30 55 16 22-24
355 140 31 40 26 48 12 21-23
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
380 150 34 33 13 55 6.5 22-24
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22





Tips of Best Polyester Printing Mesh for work:



  • 20 and 40 mesh is used mostly for glitter inks that need a very open mesh for printing.
  • 60 mesh is usually used for printing smaller glitter and most shimmer inks.
  • 80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
  • 110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
  • 120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
  • 155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
  • 200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
  • 230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
  • 280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
  • 305 mesh holds extremely high detail, letting through only a thin layer of ink. This allows for a very soft hand on the garment and is great for use in printing halftones and process prints. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.

Our factory introduction



Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.



Production processing of Polyester Printing Mesh:



Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron 0



Packing of Polyester Printing Mesh:

  • mesh rolls in a pp bag
  • 2-12rolls per cartons
  • waterproof bags outside
  • package belt strengthen

MOQ and sample of Polyester Printing Mesh:



Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.



Sample with size not more than 2meter can be supplied free, freight should be paid buyer.



Service of Polyester Printing Mesh



Pre sale service:

  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.

After sale service

  • Sending tracking number soon.
  • Training how to use it
  • Changing for new if dissatisfaction

Yellow Polyester Mesh Fabric Silk Screen Tshirt Printing High Density , 91 Micron 1
