Product Name: | 102" White 36 Micron 150T Polyester Printing Mesh Fabric For Electronics Printing | Hot Search: | Screen Printing Screens |
---|---|---|---|
Material: | 100% Polyester Monofilament Thread | Application: | Electronics Printing Screen Printing |
Width: | 102" | Aperture: | 36 Micron |
Highlight: | screen mesh fabric,polyester mesh fabric |

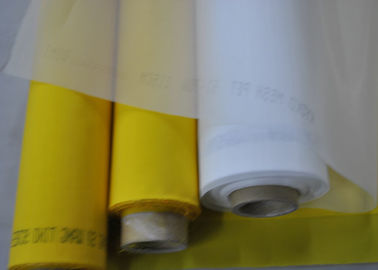

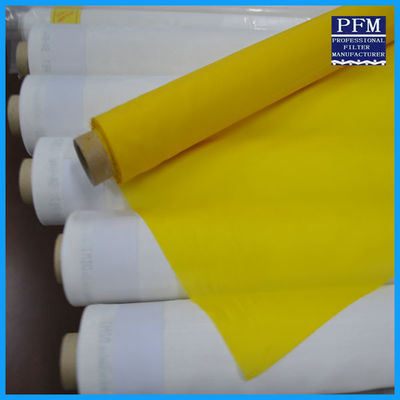

102" White 36 micron 150T Polyester Printing Mesh Fabric For Electronics Printing
Features of Polyester Printing Mesh:
Description
name |
102" White 36 micron 150T Polyester Printing Mesh Fabric For Electronics Printing |
mesh count per cm | 150 |
thread diameter | 31 |
color | white / yellow |
opening size | 36 micron |
width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
Application of Polyester Printing Mesh
Our factory introduction
Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.
Specification of Polyester Printing mesh
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
305 | 120 | 31 | 52 | 35 | 49 | 17 | 21-23 |
305 | 120 | 34 | 49 | 30 | 55 | 16 | 22-24 |
355 | 140 | 31 | 40 | 26 | 48 | 12 | 21-23 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
380 | 150 | 34 | 33 | 13 | 55 | 6.5 | 22-24 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Tips of Best Polyester Printing Mesh for work:
MOQ and sample of Polyester Printing Mesh:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
