High Temperature Screen Printing Polyester Fabric For PCB Chemicals Resistance

Name: High Temperature Screen Printing Polyester Fabric For PCB Chemicals Resistance
Brand: Anping County Comesh Filter Co.,Ltd
SKU: PFM-LIS
Price: 129.10 USD
Availability: InStock

Product Details

Place of Origin: Hebei,China

Brand Name: PFM

Certification: FDA

Model Number: PFM-LIS

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: Negotiable

Packaging Details: Plastic bag inside on one roll and plywood case outside or cut into small pieces and plastic bag

Delivery Time: 5-8days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, ，Paypal

Supply Ability: 3000meters per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                            tensile bolt cloth, tensile bolting cloth


Thread Diameter:	30-150micron	Length:	30m/roll Or Cut Into Pieces
Width:	1.15-3.6m	Aperture:	23-619micron
Opening:	13-69%

Thread Diameter:	30-150micron
Length:	30m/roll Or Cut Into Pieces
Width:	1.15-3.6m
Aperture:	23-619micron
Opening:	13-69%

Product Description

High Temerature White Or Yellow 300Mesh Polyester Bolting Clothing With Acid

1. Description

Bolting cloth adaptability is very strong, wide range of applications

Bolting cloth can not only monochrome printing, but also can be color and color printing network.

Bolting cloth products, light resistance than other types of printed products, light fastness, more suitable for outdoor advertising, signs of the use.

2. Application of polyester bolting cloth

Bolting cloth network is widely used in printing electronic PCB circuit board; printing plate, printing textiles, glass, ceramics, printing advertising, banners, magazines, printed electronic display, used to make glass shielding network, filter ink for aviation, Petrochemical and other high-tech field of melt filtration

3. Specification of polyester bolting cloth

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

4. Feature advantage of polyester bolting cloth

Chemicals resistance
By the external pressure is large, its physical properties and stability, small stretch

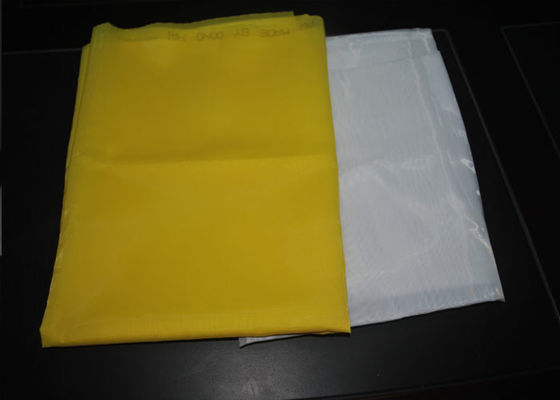

5. The difference between white and yellow polyester bolting cloth

White bolting cloth is within 40-200mesh/inch,Yellow bolting cloth is within 250-500mesh/inch
The refractive index of the two colors is different,White refraction in the copy more, affecting the quality of the screen
If you print ink, you should choose a high head,If the printing paste, select 100 or 80 mesh
