Product Details:
Payment & Shipping Terms:
|
Product Name: | 100% Polyester FDA Certificate 54T - 64 Silk Screen Printing Mesh For Electronics Printing | Hot Search: | 137 Mesh Silk Screen Printing Mesh |
---|---|---|---|
Material: | Polyester Monofilament | Application: | Printing Mesh Fabric For Electronics Printing |
Width: | 165cm | ||
Highlight: | silk screen fabric mesh,silk screen mesh roll |

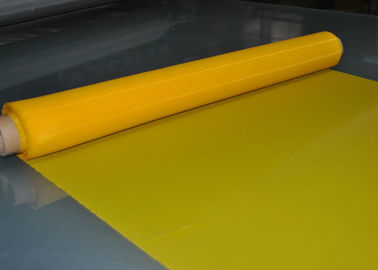

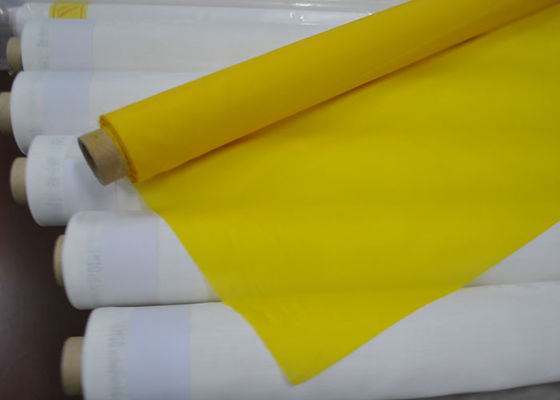

100% Polyester FDA Certificate 54T - 64 Silk Screen Printing Mesh for Electronics Printing
Description
name |
100% Polyester FDA Certificate 54T - 64 Silk Screen Printing Mesh for Electronics Printing |
mesh count per cm | 54 |
thread diameter | 64 |
color | white / yellow |
opening size | 121 micron |
width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
Features of Silk Screen Printing Mesh:
Application of Silk Screen Printing Mesh
CD/DVD printing, printing PCB, printing LED and LCD, graphic screen printing, package printing, textile printing and dyeing, printing plate, printed electronics, ceramic decorating, glass printing, printing solar cell(battery), printing circuitry board, filtering
Specification of Silk Screen Printing mesh
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
305 | 120 | 31 | 52 | 35 | 49 | 17 | 21-23 |
305 | 120 | 34 | 49 | 30 | 55 | 16 | 22-24 |
355 | 140 | 31 | 40 | 26 | 48 | 12 | 21-23 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
380 | 150 | 34 | 33 | 13 | 55 | 6.5 | 22-24 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Production processing of Silk Screen Printing Mesh:
Packing of Silk Screen Printing Mesh:
Tips of Best Silk Screen Printing Mesh for work:
MOQ and sample of Silk Screen Printing Mesh:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
Service of Silk Screen Printing Mesh
Pre sale service:
After sale service
Our factory introduction
Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester silk screen printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.
