Material: | 100%polyester | Color: | White,yellow,black |
---|---|---|---|
Name: | 100%Monofilament Micron Polyester Filter Mesh For Food Filtering | Mesh Count: | 6T-165T |
Weave Type: | Plain Weave | ||
Highlight: | polyester monofilament mesh,mesh screen fabric |

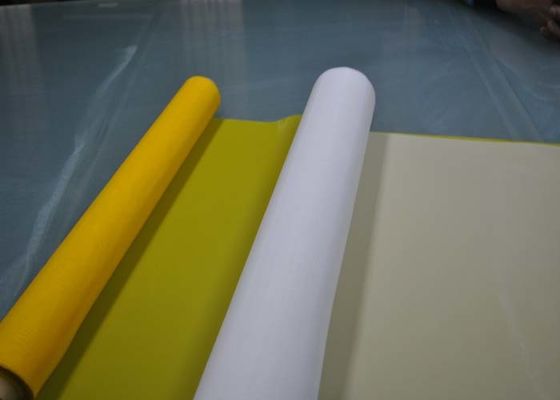

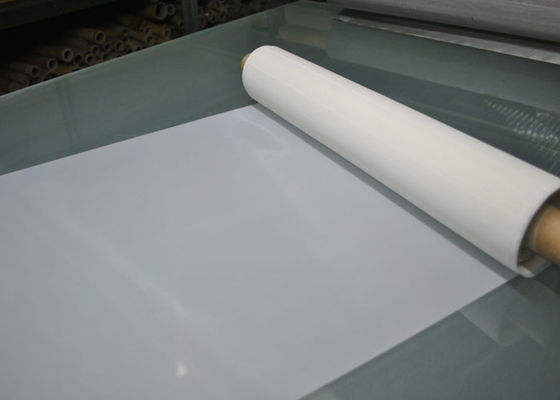

100%Monofilament Polyester Filter Mesh With White And Yellow Color
100%Monofilament Polyester Filter Mesh With White And Yellow Color Description:
Mesh Count:6T-165T
Color:White,yellow,black
Hole size:Square hole.
Thread Diameter:31micron-400micron
Mesh Opening:23micron-1500micron
Width:105cm,115m,127cm,136cm,145cm,157cm,165cm,188cm,220cm,360cm or as your need.
Mesh Roll:30meters or 50meters in general,or according to the customers's need.
100%Monofilament Polyester Filter Mesh With White And Yellow Color Application:
100%polyester filter mesh for food is widely used in areas as filtration and separation industry. Such as food industry for milling filtering and flour milling, paper making factory and other grains milling. Like glucose production, milk powder, soybean milk,liquid & dust filtration (filters, filter bags, dust filter bags,etc.
100%Monofilament Polyester Filter Mesh With White And Yellow Color Specification:
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 |
20 | 8 | 300 | 950 | 58 | 550 | 319 |
25 | 10 | 250 | 750 | 56 | 620 | 347 |
30 | 12 | 250 | 583 | 49 | 450 | 220 |
30 | 12 | 150 | 683 | 67 | 300 | 201 |
40 | 16 | 200 | 425 | 46 | 400 | 184 |
50 | 20 | 80 | 420 | 71 | 120 | 85 |
50 | 20 | 150 | 350 | 49 | 260 | 127 |
60 | 24 | 100 | 316 | 58 | 136 | 78 |
60 | 24 | 120 | 297 | 50 | 240 | 120 |
73 | 29 | 120 | 225 | 43 | 240 | 103 |
80 | 32 | 64 | 248 | 63 | 95 | 59 |
80 | 32 | 100 | 212 | 46 | 200 | 92 |
85 | 34 | 100 | 195 | 44 | 221 | 97 |
90 | 36 | 100 | 178 | 41 | 216 | 88 |
100 | 39 | 55 | 200 | 61 | 88 | 53 |
100 | 39 | 80 | 176 | 47 | 150 | 70 |
110 | 43 | 80 | 153 | 43 | 130 | 56 |
120 | 47 | 55 | 158 | 55 | 88 | 48 |
120 | 47 | 71 | 142 | 44 | 135 | 59 |
135 | 53 | 55 | 133 | 50 | 86 | 43 |
135 | 53 | 64 | 125 | 44 | 100 | 44 |
150 | 59 | 64 | 105 | 38 | 100 | 38 |
160 | 64 | 55 | 101 | 42 | 98 | 41 |
160 | 64 | 64 | 92 | 35 | 120 | 42 |
180 | 72 | 48 | 91 | 43 | 78 | 66 |
180 | 72 | 55 | 84 | 37 | 100 | 37 |
200 | 80 | 48 | 77 | 38 | 74 | 28 |
195 | 77 | 55 | 75 | 33 | 105 | 34 |
230 | 90 | 48 | 63 | 33 | 85 | 28 |
250 | 100 | 40 | 60 | 36 | 70 | 25 |
280 | 110 | 40 | 51 | 31 | 85 | 26 |
305 | 120 | 40 | 43 | 27 | 68 | 18 |
355 | 140 | 34 | 37 | 27 | 58 | 15 |
380 | 150 | 31 | 36 | 29 | 46 | 13 |
420 | 165 | 31 | 30 | 24 | 46 | 11 |
460 | 180 | 27 | 28 | 26 | 56 | 14 |
100%Monofilament Polyester Filter Mesh With White And Yellow Color Features:
100%Polyester Filter Mesh For Food using high-precision high-quality monofilament polyester , with high precision, tension stability and other characteristics, and excellent dimensional stability, and ensure the high strength and low elongation, Can greatly extend the life of the screen, the other with heat, high temperature, wear-resistant and so on.
