Product Name: | Stainless Steel Woven Wire Mesh | Size: | Usually 1.02meter*30meter Per Roll |
---|---|---|---|
Thread Diameter: | 0.02-2mm | Mesh: | 1*1-635*635mesh/inch |
Length: | 30-70m/roll | Width: | 1m,1.22m. |
Highlight: | stainless steel mesh screen,crimped wire mesh |
High Temperature 304 Stainless Steel Wire Mesh With Woven for Filtering
Decription of stainless steel mesh:
material | SUS304 316 316L,304L,201,carbon steel,galvanized steel, |
weave type | plain weave,twill weave,dutch weave,reverse dutch weave |

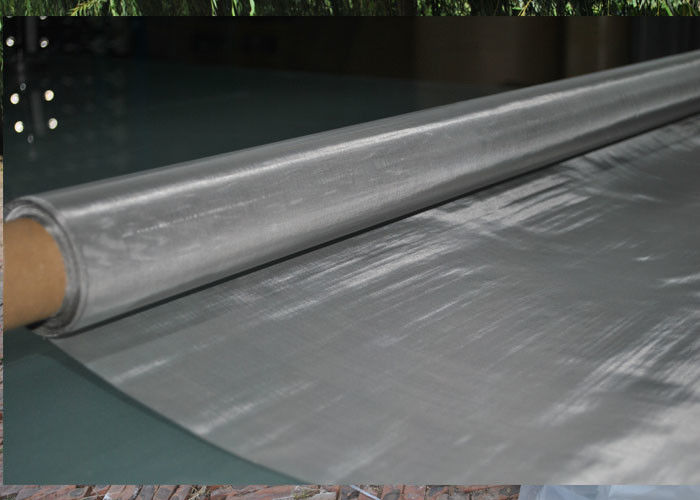

size per roll | usually 1meter or 1.2meter wide,30meter per roll |
wire diameter | Min diameter is 0.023mm |
aperture size | MIN is 1 micron |
hole shape | square,rectangle,or special hole |

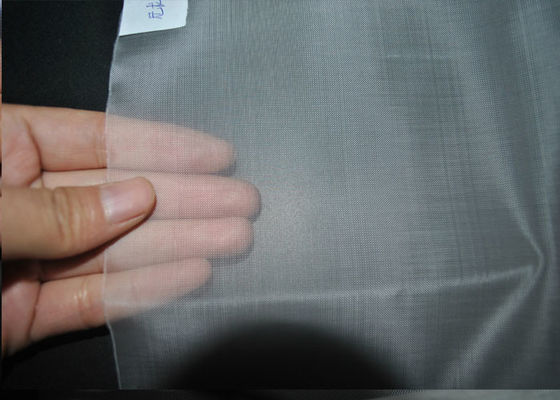

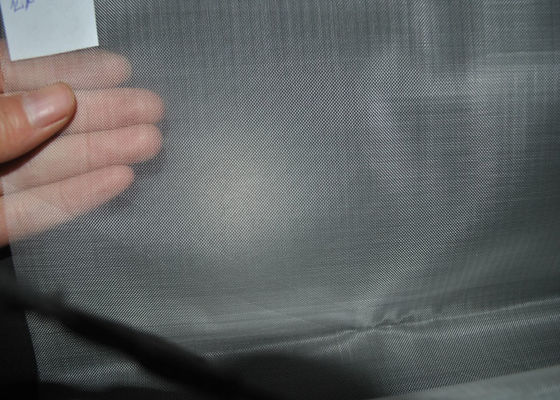

stainless steel woven wire mesh refers to wire mesh which is super fine, so it is also called stainless steel wire cloth,this kind of mesh is usually used for micron filtering industry,such as air filtering,liquid filter and small solid filtering.
Stainless steel filter wire mesh refers to stainless steel woven wire mesh used in filtering liquid,gas and pulp.Normally,this kind of wire mesh has standard opening sizes,uniform opening.good permeability and high strength.The raw materials should be chosen according to different environments of applications.
Features of stainless steel wire mesh
1. corrosion resistant,stainless steel grade is acid and alkali resistant.
2. high temperature resistant,can bear 800 degree centigrade
3. uniform wire diameter,error is +-2micron
4. stable structure
5.Wear resistance
6.Tensile resistance
Applications of stainless steel wire mesh:
1. Chemical filtering
2. Food and beverage for food filtering
3. Mining,main use coarse mesh,such as crimped wire mesh
4. Refining,mail use stainless steel fine mesh
5. Healthcare
6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
7. Acoustic,headphone net
8. Automotive
9. Security,PVC coated stainless steel mesh 11mesh.
10. Pharmaceutical: food grade stainless steel fine mesh
11. Quarry,advise carbon steel mesh
12. Electrical Cigarette:super thin stainless steel metal mesh fabric
