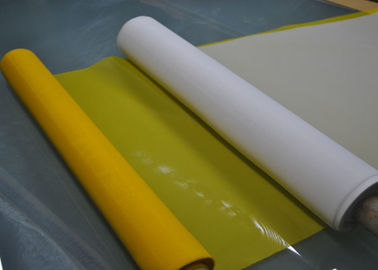

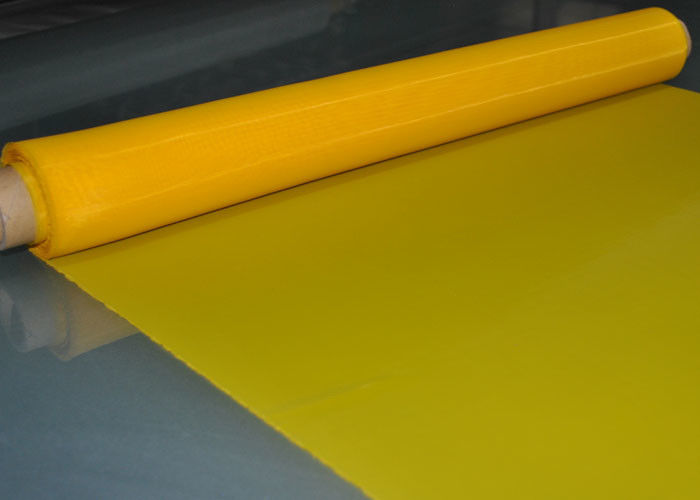

Yellow 48T Polyester Screen Printing Mesh 70 Micron for Glass

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

Yellow 48T Polyester Screen Printing Mesh For Glass Printing

Thread Diameter:

70 Micron

Application:

Glass Screen Printing Mesh

Width:

127cm

Color:

Yellow

Material:

100% Polyester Monofilament

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

monofilament polyester mesh

Product Description

Yellow 48T Polyester Screen Printing Mesh For Glass Printing, 70 Micron

Product Specifications

Attribute	Value
Product Name	Yellow 48T Polyester Screen Printing Mesh For Glass Printing
Thread Diameter	70 micron
Application	Glass screen printing mesh
Width	127cm
Color	Yellow
Material	100% polyester monofilament

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment required

Detailed Specifications

Mesh Count Per cm	48
Thread Diameter	70 micron
Color	Yellow
Opening Size	138 micron
Available Widths	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65m)

Applications

Polyester Screen Printing Mesh is widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industries.

Technical Specifications

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPENING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TENSION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
120	48	70	138	44	135	59	30-34

Mesh Selection Guide

20-40 mesh: Best for glitter inks requiring very open mesh
60 mesh: Ideal for smaller glitter and most shimmer inks
80 mesh: Suitable for shimmer inks and thick layers for high-density printing
110 mesh: Excellent for white and other thick inks, ideal for spot color printing
120 mesh: Most common size, great for white ink and thicker viscosity colors
155 mesh: General purpose textile printing with basic to semi-fine detail
200 mesh: Detailed prints needing thinner ink layer than 155 mesh
230 mesh: High-end fine detail printing, excellent for halftones
280 mesh: High-end fine detail printing with slightly more ink flow than 305
305 mesh: Extremely high detail with thin ink layer, soft hand feel

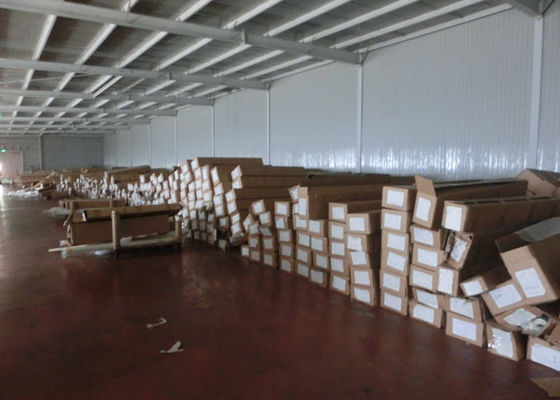

Packaging

Mesh rolls in PP bags
2-12 rolls per carton
Waterproof outer bags
Reinforced with package belts

Ordering Information

MOQ: Typically 30 meters (smaller quantities may be possible - please inquire)

Samples: Free samples available (max 2 meters), buyer pays freight

Customer Service

Pre-Sale Support:

Inquiry and consulting support
Sample testing
Factory visits

After-Sale Support:

Prompt shipment tracking
Usage guidance
Replacement for unsatisfactory products

Production Process
