| Product Name: | Polyester Screen Printing Mesh | Material: | 100% Polyester |
|---|---|---|---|
| Mode Or Transport: | By Air | Weave: | 1:1 |
| Shipping Port: | Beijing | Color: | Yellow |
| Highlight: | screen printing mesh roll,monofilament polyester mesh |
||

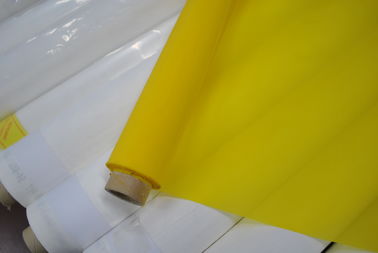

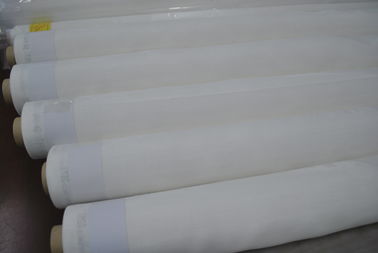

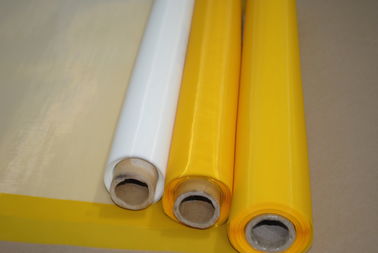

Long Service Life Polyester Screen Printing Mesh With 250Micron For Ceramics
Description
| name | Long Service Life Polyester Screen Printing Mesh With 100Micron For Ceramics |
| mesh count | 60mesh/inch |
| thread diameter | 100micron |
| color | white/yellow |
| Aperture | 301micron |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
Polyester printing is also made of chemical synthetic fiber, belonging to the polyester system
Features of polyester screen printing mesh:
Remark:It is not suitable for alkali resistance
Application
Polyester Screen Printing Mesh is widely used in Textile printing,T-shirt printing,ceramic printing,glass printing and PCB printing industry.
Specification of polyester screen printing mesh
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
| 150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Screen printing is a stencil printing, it is printed with India, embossed, gravure together known as the four printing methods. The stencil printing includes transcripts, engravings, stencils and screen printing. The principle of stencil printing is: the printing plate (paper version or other version of the foundation to produce through the ink hole) in the printing, through a certain pressure to the ink through the hole version of the hole transferred to the substrate (paper, ceramics ), The formation of images or text.
Production processing of polyester screen printing mesh:
Mode of transport
MOQ and sample of polyester screen printing mesh:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
