Product Name: | 57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing | Thread Diameter: | 64 Micron |
---|---|---|---|
Mesh/inch: | 160 | Application: | Electronics Printing Mesh |
Highlight: | screen printing mesh roll,monofilament polyester mesh |

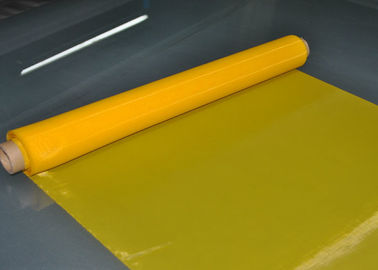

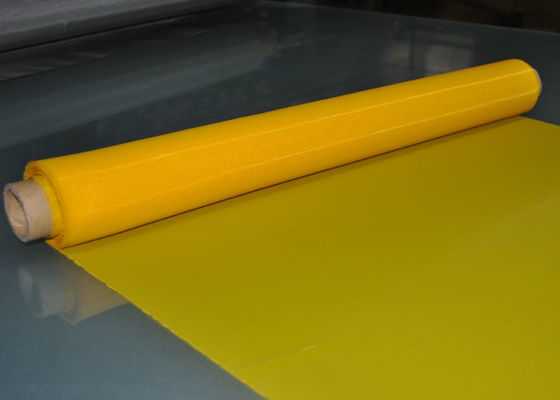

57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing
Our factory introduction
Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester screen printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.
Description
name | 57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing |
mesh count per cm | 64 |
thread diameter | 64 |

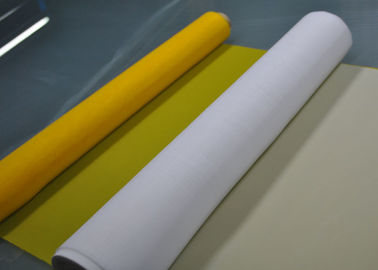

color | white/yellow |
opening size | 92micron |
width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
Features of polyester screen printing mesh:
Application
Polyester Screen Printing Mesh is widely used in Textile printing,T-shirt printing,ceramic printing,glass printing and PCB printing industry.
Specification of polyester screen printing mesh
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
150 | 61 | 64 | 100 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
MOQ and sample of polyester screen printing mesh:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
