64T Polyester Screen Printing Mesh 160 Mesh for Electronics

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing

Thread Diameter:

64 Micron

Mesh/inch:

160

Application:

Electronics Printing Mesh

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing mesh roll

monofilament polyester mesh

Product Description

High Tension Polyester Screen Printing Mesh 64T - 64 For Electronics

Product Specifications

Attribute	Value
Product Name	57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing
Thread Diameter	64 micron
Mesh/inch	160
Application	Electronics Printing Mesh

Product Description

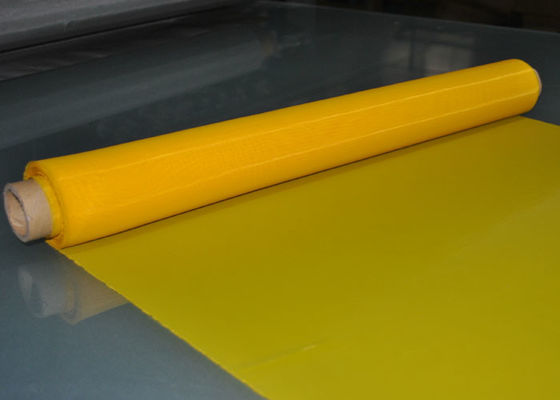

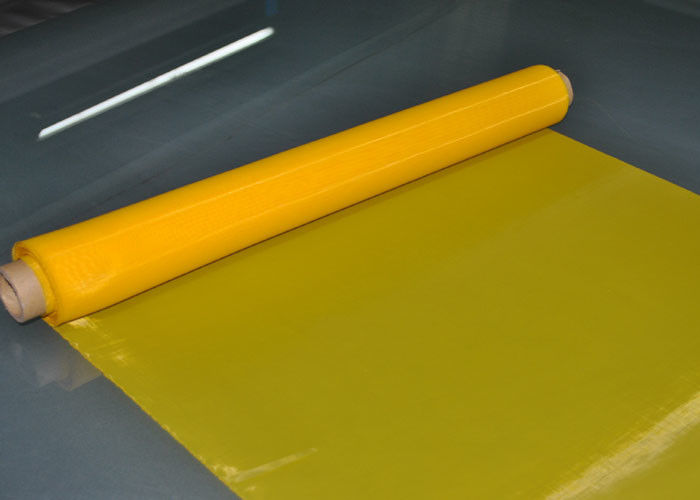

57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh is specially designed for electronics printing applications, offering superior performance and durability.

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Excellent antistatic properties
No surface treatment required

Technical Specifications

Count (inch)	Count (cm)	Diameter (µm)	Opening (µm)	Open Area (%)	Thickness (µm)	Volume (cm³/cm²)	Max Tension (N/cm)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
160	64	64	92	35	120	42	30-34

Applications

Polyester Screen Printing Mesh is widely used in:

Textile printing
T-shirt printing
Ceramic printing
Glass printing
PCB printing industry

Minimum Order Quantity & Samples

Standard MOQ is 30 meters. For smaller quantities, please contact our sales representative.

Free samples (up to 2 meters) are available with freight to be paid by buyer.

Production Process

Packaging

Mesh rolls in PP bags
2-12 rolls per carton
Waterproof outer bags
Reinforced with package belts

Customer Service

Pre-sale Service:

Inquiry and consulting support
Sample testing support
Factory visits available

After-sale Service:

Prompt shipment tracking
Usage guidance and training
Replacement for unsatisfactory products
