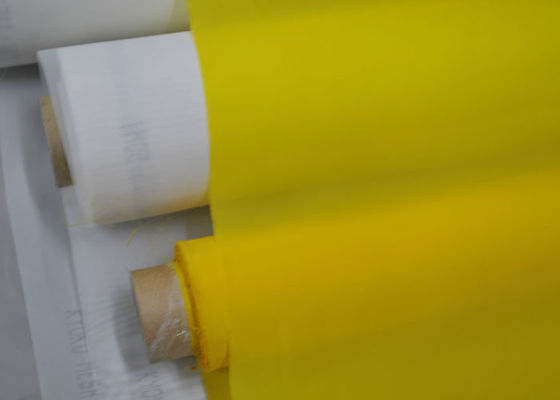

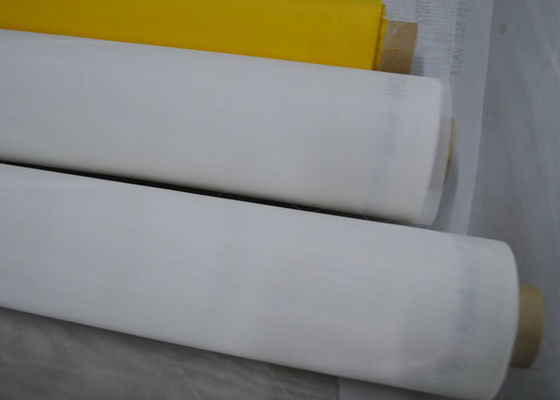

White 64T 55 Micron Polyester Screen Printing Mesh for PCBs

White 64T 55 Micron Polyester Screen Printing Mesh for PCBs

White 64T 55 Micron Polyester Screen Printing Mesh for PCBs

Brand Name: PFM
Model Number: PFM-Hel
MOQ: 30meter
Price: Negotiable
Payment Terms: D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability: 3000meters per week
Detail Information
Product Description
Detail Information
Place of Origin:
Hbei,China
Certification:
FDA
Product Name:
Yellow 64T - 55 Micron Polyester Screen Printing Mesh For Printed Circuit Boards Printing
Thread Diameter:
55 Micron
Mesh/inch:
160
Applications:
Printed Circuit Boards Printing
Color:
White
Packaging Details:
plastic bag inside, carton case outside,5-10rolls in one carton
Highlight:

screen printing mesh roll

,

monofilament polyester mesh

Product Description
Yellow 64T - 55 Micron Polyester Screen Printing Mesh
Product Specifications
Attribute Value
Thread Diameter 55 micron
Mesh Count (per inch) 160
Mesh Count (per cm) 64
Opening Size 101 micron
Color White/Yellow
Available Widths 115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65m)
Primary Application Printed Circuit Boards (PCB) Printing
Key Features
  • High tension threshold and breaking point
  • High modulus, low elongation monofilament polyester yarn
  • Resistant to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Excellent antistatic properties
  • No surface treatment required
Applications

This polyester screen printing mesh is widely used in:

  • Printed Circuit Board (PCB) printing
  • Textile and T-shirt printing
  • Ceramic and glass printing
  • Industrial printing applications
Technical Specifications
Count (inch) Count (cm) Diameter (µm) Opening (µm) Open Area (%) Thickness (µm) Volume (cm³/cm²) Max Tension (N/cm)
160 64 55 101 42 98 41 25-30
Production Process
White 64T 55 Micron Polyester Screen Printing Mesh for PCBs 0
Packaging Details
  • Mesh rolls in PP bags
  • 2-12 rolls per carton
  • Waterproof outer packaging
  • Reinforced with package belts
Ordering Information

Minimum Order Quantity (MOQ): Typically 30 meters (smaller quantities may be available upon request)

Samples: Free samples up to 2 meters available (customer pays shipping)

Mesh Selection Guide
  • 20-40 mesh: Ideal for glitter inks requiring open mesh
  • 60 mesh: Suitable for smaller glitter and shimmer inks
  • 80 mesh: Excellent for high-density printing and foil adhesive
  • 110-120 mesh: Perfect for thick inks and maximum coverage
  • 155-200 mesh: General purpose textile printing with good detail
  • 230-305 mesh: High-end fine detail and halftone printing
Customer Support

Pre-Sale Services:

  • Technical consultation and support
  • Sample testing
  • Factory visits

After-Sale Services:

  • Prompt shipment tracking
  • Usage guidance
  • Quality guarantee and replacement policy
White 64T 55 Micron Polyester Screen Printing Mesh for PCBs 1
