Product Details:
Payment & Shipping Terms:
|
| Shape: | Round,or Rectangular Or As Your Request | Filter Accuracy: | Min 2 Micron |
|---|---|---|---|
| Size: | According To The Customer's Need | Hot Search: | Wire Mesh Filter |
| Highlight: | wire mesh air filter,metal gauze filter |
||

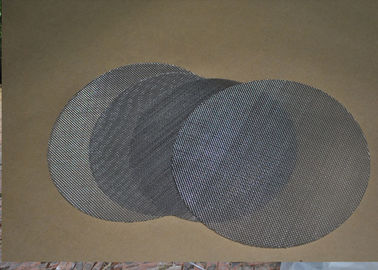

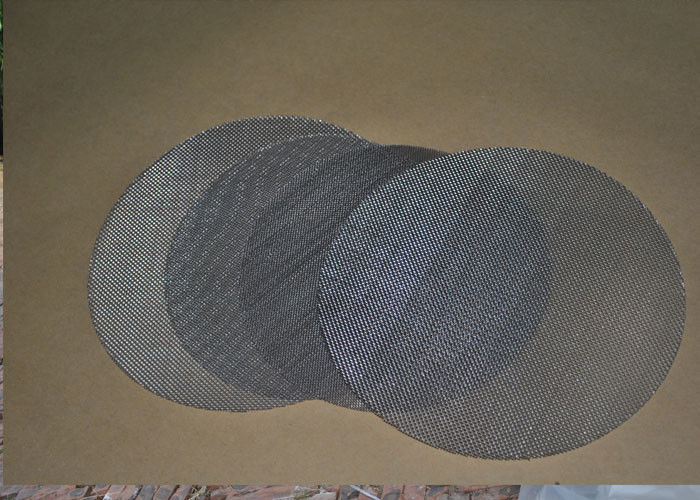

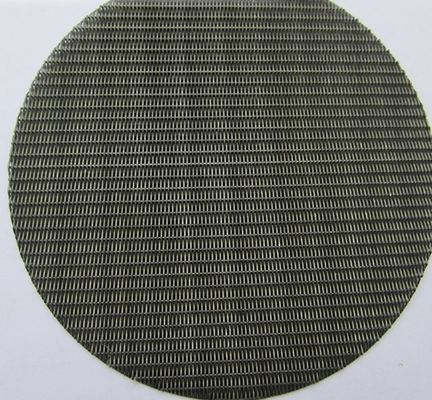

Metal Wire Mesh Filter Disc With Easy To Use For Metallurgy Filtering
Definition:Stainless steel filter mesh that is, metal mesh, also known as oil filter, disc filter, chemical fiber assembly
Processing technology
It is made of different mesh metal mesh and support network and through the edge of the package made
Material
Stainless steel mesh, I-type network, black silk cloth, copper mesh, galvanized square wire mesh, black silk cloth and so on.
Features of Stainless steel wrie mesh filters:
Specifications of mesh filters:
| material type | stainless steel 201,304 316 316L,2080,601,carbon steel,iron,copper,brass |
| shape | Round,Rectangular,special shape, |
| processing way | welded,dot welded,woven,folded,punching,sintered |
| Thread diamtter | 5-400micron |
| structure | single layer,double layer or multi-layer |
| edge treatment | edge filter disc / no edge filter disc |
| specification | 40/20,65/30,90/30,90/45,125/60,155/70,175/90 etc. |
| size | desinged according to customer`s requirement |
| Average filtering accuracy | 5-80micron |
| Filter material | Phosphor copper mesh, stainless steel plain screen, twill and stainless steel seats type network |
Application:
Mainly used in the filter press oil filter and ship, diesel and other equipment, oil system filtration, as well as chemical fiber industry in synthetic fiber and man-made fiber textile with various types of spinning head and other similar conditions, the textile Filtration of impurities in the stock solution.
Shipping of stainless steel wire mesh filters:
for small quantity,we ship mesh filters by courier,which is the best economic shipping way,for big quantity,filters can be shiped by air or by sea.
sample of stainless steel wire mesh filters:
for expensive and special desinged sample,the designed fee should be charged,other can be supplied free.all freight to other countries expect China mainland should be paid by buyer.
Package of stainless steel wire mesh filters:
Use plywood case or carton box
According to your request
