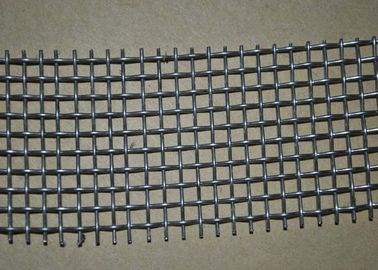

Micron Woven Stainless Steel Wire Mesh Screen With Plain / Twill Weave

Large Image : Micron Woven Stainless Steel Wire Mesh Screen With Plain / Twill Weave

Product Details:

Place of Origin:	Hebei,China
Brand Name:	PFM
Certification:	SGS
Model Number:	PFM

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	Negotiable
Packaging Details:	waterproof paper inside,plywood case outside or according to your needs.
Delivery Time:	in 3 days for goods in stock
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	2000 square meter per month

Contact Now

Detailed Product Description

Material:	Stainless Steel 304,316,316L	Type:	Woven Mesh
Size:	Usually 1.02meter*30meter Per Roll	Hot Search:	Stainless Steel Wire Mesh
Weave Type:	Plain Weave, Twill Weave,dutch Weave,crimped
High Light:	crimped wire mesh , stainless steel mesh cloth

SGS Certification Micron Stainless Steel Wire Mesh With Plain And Twill Weave

Features of stainless steel wire mesh
1. corrosion resistant,stainless steel grade is acid and alkali resistant.
2. high temperature resistant,can bear 800 degree centigrade
3. uniform wire diameter,error is +-2micron
4. stable structure
Decription of stainless steel wire mesh:

1. Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Specifications of stainless steel wire mesh:

Stainless Steel Filter Wire Mesh Specification
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(kg/Square meter)
1×1	0.080	2.03	0.920	23.37	92.0	2.0
2×2	0.063	1.6	0.437	11.1	87.4	2.5
3×3	0.054	1.37	0.279	7.09	83.8	2.7
4×4	0.047	1.2	0.203	5.16	81.2	2.7
5×5	0.041	1.04	0.159	4.04	79.5	2.6
10×10	0.024	0.6	0.076	1.94	74.9	1.8
12×12	0.020	0.5	0.064	1.62	75.9	1.5
14×14	0.020	0.5	0.052	1.314	71.9	1.75
16×16	0.018	0.45	0.045	1.137	71.2	1.6
18×18	0.016	0.4	0.0398	1.01	69.4	1.4
20×20	0.009	0.24	0.041	1.03	76.0	0.57
20×20	0.012	0.3	0.0382	0.97	72.2	0.9
30×30	0.012	0.3	0.0215	0.547	63.9	1.35
30×30	0.0094	0.24	0.0243	0.62	72.1	0.84
40×40	0.0098	0.25	0.015	0.385	36.74	1.25
50×50	0.0079	0.2	0.0121	0.308	36.7	1.0
60×60	0.0047	0.12	0.012	0.303	71.6	0.42
60×60	0.0059	0.15	0.0107	0.273	64.5	0.65
80×80	0.0047	0.12	0.0078	0.198	38.7	0.58
80×80	0.0055	0.14	0.0069	0.177	45.5	0.76
100×100	0.0039	0.1	0.006	0.154	59.8	0.50
100×100	0.0043	0.11	0.0056	0.144	55.1	0.60
120×120	0.0027	0.07	0.0056	0.142	67.7	0.29
120×120	0.0031	0.08	0.0052	0.132	38.7	0.38
150×150	0.0024	0.06	0.0043	0.109	41.6	0.27
165×165	0.0018	0.45	0.0043	0.109	50	0.167
180×180	0.0019	0.05	0.0036	0.091	64.5	0.22
180×180	0.0023	0.06	0.0032	0.081	57.4	0.32
200×200	0.0019	0.05	0.003	0.077	60.6	0.24
200×200	0.0024	0.06	0.0026	0.067	52.7	0.35
250×250	0.0012	0.03	0.0028	0.072	49.8	0.11
250×250	0.0016	0.04	0.0024	0.062	36.9	0.20
270×270	0.0014	0.035	0.0023	0.059	60	0.16
270×270	0.0016	0.04	0.0021	0.054	57.4	0.21
300×300	0.0012	0.03	0.0022	0.055	57	0.13
325×325	0.0014	0.035	0.0017	0.0432	55.3	0.20
400×400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500×500	0.0009	0.025	0.001	0.0258	50.7	0.15
635×635	0.0007	0.018	0.0008	0.022	55	0.10

Applications of stainless steel wire mesh:

1. Used in separating and cooling in the extremely high-temperature environment.
2. Used for making gas evenly in the powder industry and the application of fluidization plates in steel industry.
3. Used for gas distribution in the fluidized bed.
4. Used in washing and drying in the pharmaceutical industry .
5. Used in filtering about polyester, oil, food and beverage, chemical fiber products, also used in water treatment and filtration of gases.

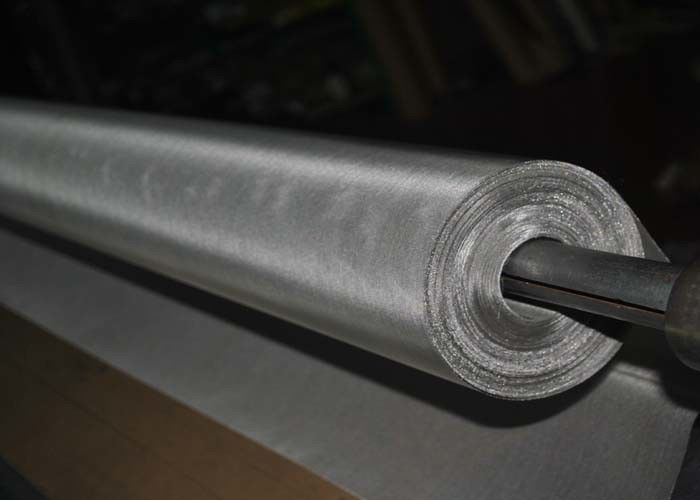

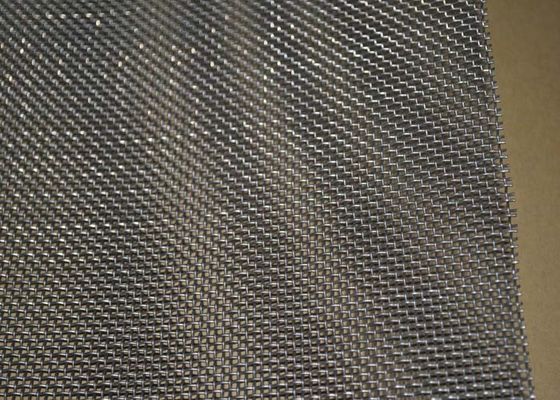

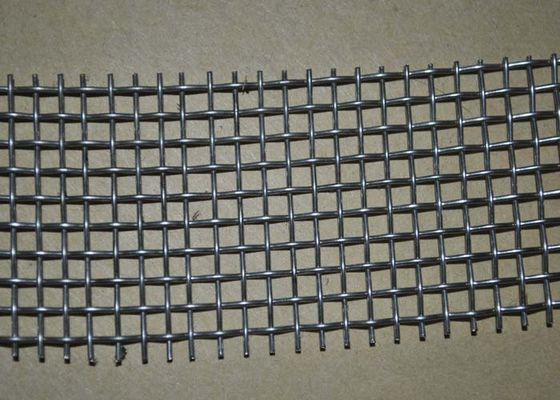

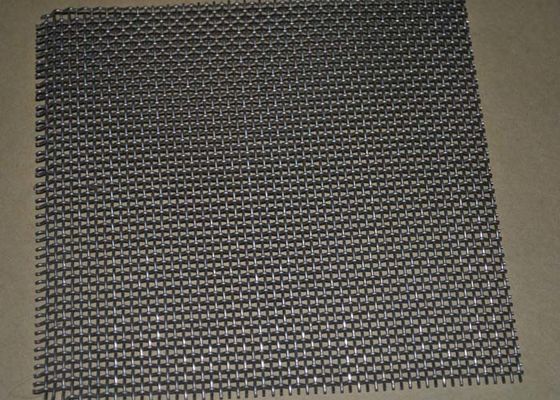

Micron Woven Stainless Steel Wire Mesh Screen With Plain / Twill Weave 0

Packing of stainless steel wire mesh:
