| Material: | Polyester | Pattern: | DPP Mesh |
|---|---|---|---|
| Mesh/inch: | 40-600mesh/inch | Color: | White,yellow,black |
| Weave Way: | Plain Or Twill | Supply Type: | In Stock |
| Shipping Port: | Tianjin Or Beijing | Sample: | Free |
| Highlight: | screen printing fabric mesh,monofilament polyester mesh |
||

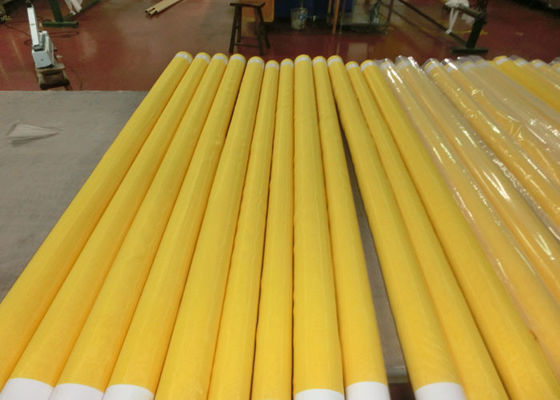

Yellow Polyester Printing Screen Mesh for Textile / Glass / PCB / Ceramic Printing
1.Description
Polyester screen printing mesh is woven from yarn that is extruded from heated polyester into a single strand. The extruded thread is the spun to a precise diameter. Conventional monofilament polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its "plastic deformation" point, and the screen will no longer hold tension.
2.Application
Polyester was introduced to the screen printing market over 40 years ago and quickly replaced traditional silk as the fabric of choice among screen printers all over the world. It is a material that is uniquely suitable for screen printing of its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. Polyester screen is a kind of synthetic fabric constructed similar to silk, yet with better uniformity. Compared to silk, polyester screen cloth offers extreme durability, yet has a lower price.
3 Specification
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
4.Feature advantage
1. Super high tensility and low elongation -all our threads are the best domestic or imported.
2. Standard size, fine mesh-all our workshops adopt international advanced production lines.
3. Nice appearance, flat and soild mesh face, chemical resistance and good screen printing characteristic.
4. Wear resistance, corrosion resistance, high strength and elasticity, heat resistance, acid resistance.
