Product Details:
Payment & Shipping Terms:
|
Materail: | 100%Nylon | Color: | White,Yellow,Black |
---|---|---|---|
Name: | Food Grade FDA Certification Nylon Filter Mesh With White And Yellow Color | Hot Search: | Nylon Filter Mesh |
Weave Type: | Plain,Twill | Mesh Count: | 5T-165T |
Highlight: | nylon screen mesh,nylon mesh cloth |
Food Grade 100% Nylon Filter Mesh With FDA Certification Used For Filtering Bag
Specification:
Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
Description:
1. Material: 100% nylon (polyester available if needed)
2. Weaving: Plain weave (Twill weave available if needed)
3. Mesh Count: 4T~140T mesh/cm(13mesh~355 mesh/inch)
4. Max. width: 365cm (143inch)

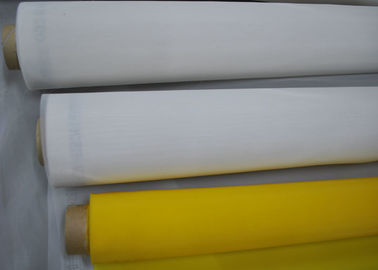

5. Color: white/yellow/black
6. Monofilament or Doublefilament
7. We can provide products in special specifications according to your demand.
Application:
100%nylon is a versatile material due to its great strength, flexibility, long life and resistance to abrasion. Filtration rates can be from 27% to 78%. Such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk etc.
Advantage:
Non-toxic, odourless, tasteless, high strength, high elongation, good elasticity. With high toughness, good elasticity, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics. Its application range is very widely.
