127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen

Brand Name:	COMESH
Model Number:	CM-SM010
MOQ:	2 m
Price:	USD 0.5 to 10 per meter
Supply Ability:	50000m per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Material:

Stainless Steel 304 Or 201

Weave Type:

Constrast Dutch Weave

Mesh Count:

40 - 350

Wire Diameter:

0.27/0.4 Mm

Width Range:

40mm - 230mm

Length:

10m

Packaging Details:

waterproof paper per roll, and then wooden case outside.

Product Description

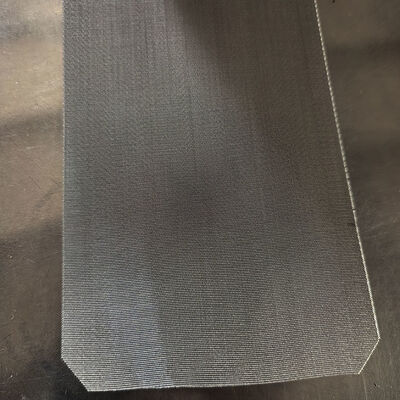

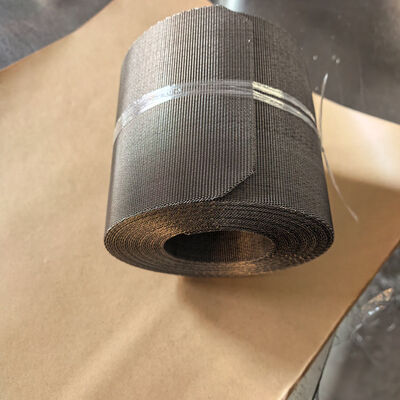

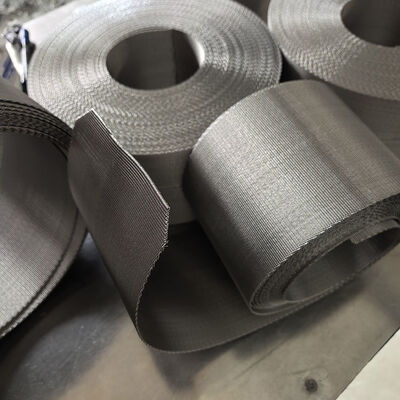

127mm Width 152 Mesh Stainless Steel Reverse Dutch Woven Wire Mesh For Plastic Extruder

Product Overview

Stainless steel reverse dutch wire mesh, also known as contrast type net, contrast seat mesh belt or Dutch cloth, is a high-performance filtration mesh woven by the reverse dutch technique with premium stainless steel wires. Its defining feature is the thicker weft wires and finer warp wires, creating a significant "contrast" in wire diameter and density between warp and weft, which delivers superior filtration accuracy and structural strength compared to standard square mesh.

Technical Specifications

Mesh/Inch	Wire Dia. (mm)	Width (mm)	Length (mm)
72/15	0.45/0.55	97-400	10/20
132/17	0.32/0.45	97-400	10/20
152/24	0.27/0.4	97-400	10/20
170/17	0.27/0.45	97-400	10/20
200/40	0.17/0.27	97-400	10/20
260/40	0.15/0.25	97-400	10/20

Applications

Rubber industry
Plastic industry
Oil industry

Packaging

Waterproof paper bag per roll, and then wooden case outside. Customized packaging available upon request.

Delivery Options

Available shipping methods include sea, air, or express carriers (DHL, TNT, FEDEX, SF, UPS, etc.). DDP service is also available.

Product Images
