Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt

Name: Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Brand: Anping County Comesh Filter Co.,Ltd
SKU: CO-LO
Price: 20.99 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Comesh

Certification: FDA

Model Number: CO-LO

Payment & Shipping Terms

Minimum Order Quantity: 30 meters

Price: USD 5.99-35.99per meter

Packaging Details: wooden box

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T

Supply Ability: 1000 meters per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                    copper-clad steel wire mesh filter belt, stainless steel wire mesh filter, decorative wire mesh filter belt


Product Description

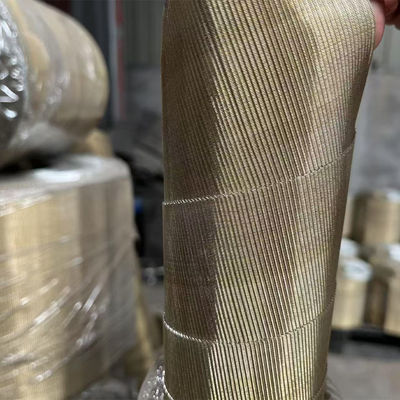

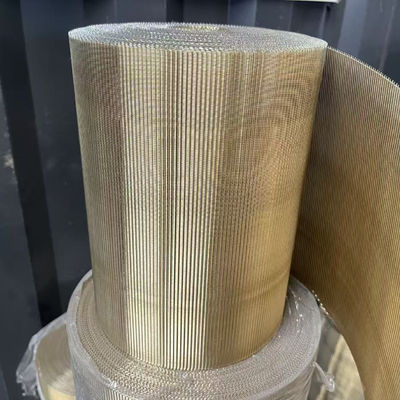

Copper Clad Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh

product name: Copper Clad Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Belt

Material:Copper Clad Steel Wire
Size:Customized
Standard Width:1000mm, 1200mm, 1500mm (Other widths can be customized)

Weaving Type: Plain Dutch Weave (PDW) / Twilled Dutch Weave (TDW)

Micron Rating: ~ 800μm to ~ 20μm (Varies depending on mesh count)
Wire Diameter: Weft wire: 0.12mm - 0.55mm; Warp wire: 0.25mm - 1.2mm

Product Name: Copper-Clad Steel Dutch Woven Wire Mesh / Filter Mesh

Product Overview:
Our Copper-Clad Steel Dutch Woven Wire Mesh is a high-performance filtration material engineered for heavy-duty applications. It combines the exceptional strength and magnetic permeability of steel core with the superior corrosion resistance, electrical conductivity, and anti-galling properties of a copper outer layer. Manufactured using the robust Dutch Weave method, it ensures high particle retention capability and outstanding mechanical stability under extreme pressure and flow conditions.

Specification

Mesh	Wire diameter(mm)	Width(mm)	Length(mm)
72×15	0.45×0.55	97-400mm	10/20
120×15	0.35×0.45	97-400mm	10/20
132×17	0.32×0.45	97-400mm	10/20
150×17	0.3×0.45	97-400mm	10/20
152×24	0.27×0.4	97-400mm	10/20
170×17	0.27×0.45	97-400mm	10/20
180×18	0.27×0.45	97-400mm	10/20
200×40	0.17×0.27	97-400mm	10/20
260×40	0.15×0.25	97-400mm	10/20

Product Application

This versatile mesh is ideal for applications demanding strength, fine filtration, and corrosion resistance.
* Petrochemical Industry: High-pressure filter elements in oil and gas pipelines, fuel filters, and refinery processes.

* Chemical Processing: Filtering aggressive chemicals, acids, and solvents under high pressure and temperature.

* Pharmaceutical Industry: Pre-filtration and carrier media in catalyst recovery and processing.

* Mining & Mineral Processing: Dewatering screens, sizing, and filtering slurries and abrasive materials.

* Plastics Industry: Filtering polymer melts in extruder and spinneret systems.

* Aerospace & Hydraulics: Critical filtration in fuel and hydraulic systems.

* Magnetic Shielding & EMI/RFI Shielding: Utilizes the magnetic properties of the steel core while the copper surface aids in conductivity.

Product Features

* Dual-Material Advantage: The steel core provides high tensile strength and durability, while the copper cladding offers
excellent resistance to corrosion and chemical attack.

* High Dirt Holding Capacity: The Dutch Weave structure creates a deep, complex filtration bed that can trap a large amount of contaminant before clogging.

* Exceptional Stability: Resists deformation under high differential pressure and mechanical stress, maintaining consistent filtration performance.

* Smooth Surface: The copper surface reduces friction, prevents material build-up (anti-blinding), and allows for easier cleaning and reuse.

* Magnetic & Conductive: Can be used in applications requiring magnetic properties or electrical conductivity.

* Long Service Life: The robust construction and corrosion resistance significantly extend the mesh's lifespan compared to standard steel meshes.

Product Advantages

* Cost-Effective Performance: Delivers the strength of stainless steel at a more competitive price, with the added benefits of copper's conductivity and corrosion resistance.

* Superior to Single-Layer Meshes: Offers a better balance of strength and corrosion resistance than plain copper or plain steel meshes alone.

* Enhanced Filtration Efficiency: The precise Dutch Weave ensures accurate micron retention, improving the quality of your end product.

* Reduced Downtime: High strength and anti-blinding characteristics lead to longer intervals between maintenance and screen changes.

* Customization: We can tailor the mesh count, wire diameter, width, and length to perfectly fit your machinery and process needs.

* Global Standards: Our products are manufactured to meet international quality standards, ensuring reliability for your critical operations.

Packing & Delivery

paper+(plastic bag)+wooden box,each roll to be wrapped with water proof paper or as requirements

Company Profile

Anping County Comesh Filter Co.,Ltd, founded in 1987 , landed in wire mesh hometown Anping county , which is rich in wire mesh material , now Comesh is a leading manufacurer of food grade materials,such as wire mesh tray and basket for drying,baking,Sterilization and dehydrator for food,fruit and vegetables . stainless steel and polyester mesh conveyor belt for food conveyor , polyester and nylon monofilament wire mesh and wire mesh filters for filtering, we also supply kitchen products such as chain mail scrubber for cast iron pans Our products have pass many tests and certificates such as and Clean and food Safty is our aim. Products customization is our advantage.

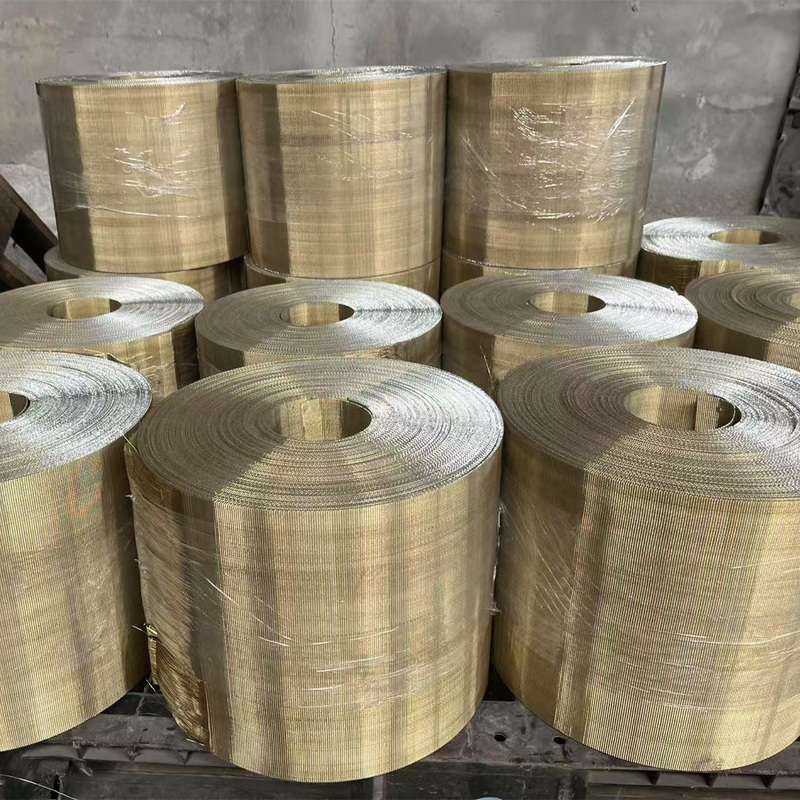

Our Inventory Display

Why Choose Our Products

We are a professional manufacturer with over 20 years of experience in weaving industrial wire mesh. We provide strict quality control, competitive pricing, reliable logistics, and excellent after-sales service. Contact us today to get a free sample and a competitive quotation for your project!
