| Brand Name: | COMESH |
| Model Number: | 1-625 mesh |
| MOQ: | 1 square meter |
| Payment Terms: | L/C, T/T, Western Union, ,Paypal,Trade assurance |
| Supply Ability: | 2000 square meter per month |

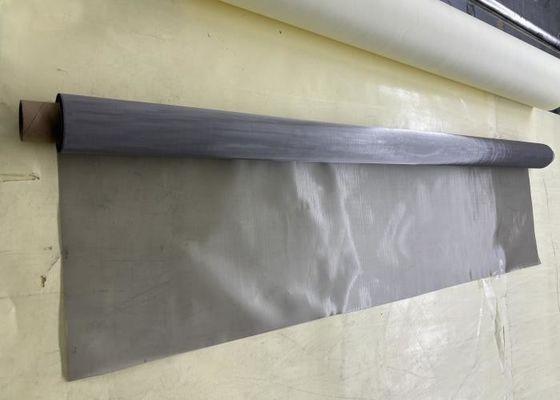

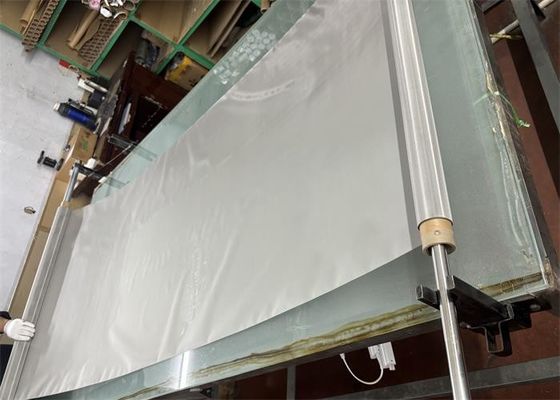

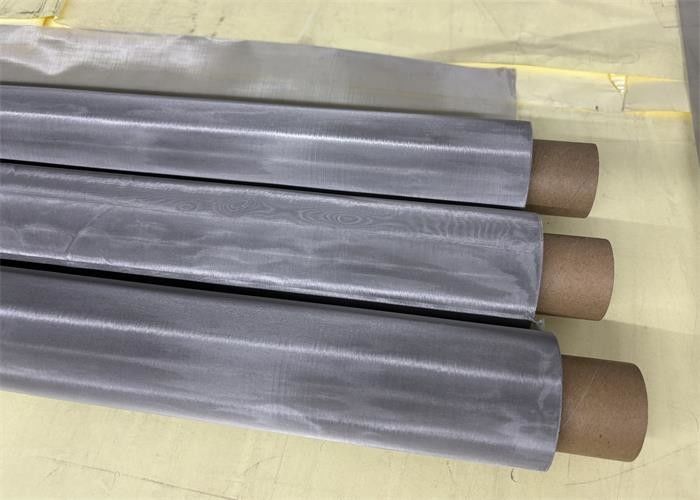

5 10 20 25 50 60 70 80 100 200 1000 Micron Ultra Fine 304 316L Stainless Steel Woven Wire Mesh For Filter Mesh Cloth
Stainless steel wire mesh has been widely used in chemical, petrochemical and oil exploration, transportation, nuclear industry, energy, textile, aerospace, electronics, food, phamaceutical, paper and other industrial sectors, in certain areas or may not become an indispensable substituted metal material. In addition, the sub-mesh stainless steel and decorative and easy to clean and antibacterial properties, in the consumer sector it has been widely used, such as construction and decoration, kitchen utensils, cutlery, metal and other civil.
Decription of stainless steel wire mesh:
| material | SUS304 316 316L,304L,201,carbon steel,nickel mesh |
| weave type | plain weave,twill weave,dutch weave,reverse dutch weave |
| Mesh/inch | 1*1-635*635mesh/inch |
| wire diameter | Min diameter is 0.023mm 0.02-2mm |
| aperture size | 0.02-23.37micron |
| hole shape | square,rectangle,special |
The opening can be square,rectangular or special opening.Normally,this kind of wire mesh has standard opening sizes,uniform opening,good permeability and high strength.The raw material should be chosen according to different enviroments of applications.
crimped woven wire mesh refer to coarse wire mesh.the wire diameter of crimped mesh is bigger than that of stainless steel fine woven mesh,so crimped wire mesh if of high strength,can used as protection fence,coal mine sieveing screen and wire mesh for hoggery.
Dutch weave wire mesh is another kind of stainless steel woven wire mesh,this mesh count of warp and weft is different,the thickness is bigger than than of stainless steel fine mesh,Dutch weave wire mesh is widely used as micron filtering material of environmental protection equipment.
Reverse dutch weave wire mesh is a kind of dutch weave wire mesh,the mesh count per inch of warp wire is more than that of weft wire,then to form much more thickner of mesh surface.reverse dutch weave wire mesh is widely used as plastic extruder machine.
Specifications :
1. Consistent pore size distribution guarantees a significantly higher particle separation
2. material:SUS304 316 316L,316L is mainly designed for marine aquaculture and pharmacy.
3. mesh count per liner inch:2-635mesh
4. wire thread can be from 0.08” to 0.0008”
5.width:usually 40” and 48”,special can be ordered
Applications :
1.Stainless steel mesh include printing mesh and filter mesh;
2.Stainless steel filter screen is smooth, non-rusting, corrosion resistant, non-toxic, hygienic and environmentally friendly Last a long time, very stiff, very sturdy, hard and heat resisting and not rusty, but Noted you can not form these sheets into organic shapes absolutely! The material that is easy to be cut with tin snips.
3.Stainless steel mesh used to chemical product filtration, food and spice separation
4.Used in an outdoor fire pit to line the weep holes. Perfect strength and rigidity yet easily bent into the desired shape, you can try other Mesh Screen and the weight of the lava rock in the fire pit kept pushing out the mesh. This metal screen mesh will be held strong and drains perfectly!
