Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel 304 316 Or As Your Request | Plate Thickness: | 1mm - 5mm |
---|---|---|---|
Length: | 10 - 30m / Roll | Width: | As Per Order |
Sample: | Available | We Are Factory: | Yes |
Highlight: | carbon steel wire mesh conveyor belt,customized hole wire mesh conveyor belt,stainless perforated plate wire mesh belt |

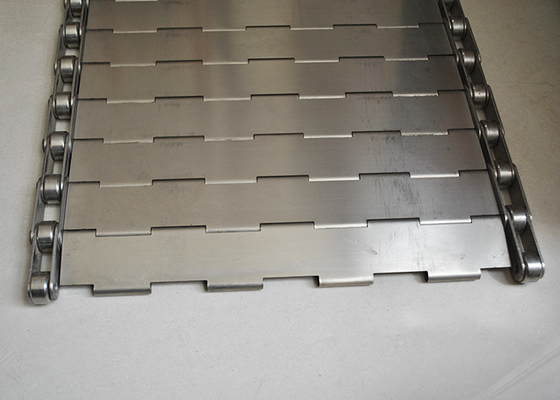

Stainless / Carbon Steel Perforated Plate Link Chain Driven Conveyor Belt
Introduction

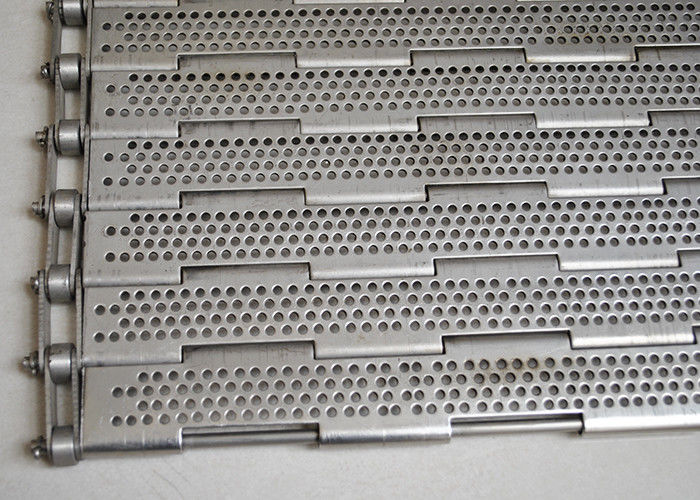

Plate conveyor belt consists of hinged slats with or without perforations. Perforated plate belt is ideal for drainage conveyor system. The size of perforation range can be custom, its possibility to have of al kinds of perforations to fit the product production line.
Hinged plate belts have side plates and cross flights in various combinations of height and thickness to suit different customers' requirements. They can satisfy light to heavy load capacity. Chain edge plate belts are also available in side plates and cross flights. The chains at both ends can be fixed with cotter pins or washers, which are convenient to disassemble and maintain.
The link plate belts are tailor made and can be executed with pitches in almost any width and length and plate thickness .The link plate belt is positively driven by sprockets.
Edge Availability
Flat flex conveyor belts are available in two edge types:
1. Standard plate link conveyor belt
2. Plate link conveyor belt with side plate
Specifications
Material | Stainless steel 304 316 or as per order |
Plate thickness | 1mm - 4mm.Special wire diameter is available |
Pitch | 25.4mm - 125mm.Other pitches can be customized. |
Barrier | The shape and size can be customized |
Sample | Sample can be produced according to your requirements |
Feature
● Temperature resistance, which can be used in extremely high and low temperatures.
● Corrosion and rust resistance make it possible be used in the corrosive environments.
● The baffles can be added onto the belt for convenient sorting and conveying.
● The side guards can be added onto the belt to prevent products from spillage.
● Chain link edge can ensure the smooth and high efficiency working.
● Curved perforated plate conveyor belt is available to suit more applications and equipment.
Application
Plate link conveyor belts are versatile and find applications in various industries due to their unique design and characteristics. Here are some common applications of plate link conveyor belts:
● Packaging and Material Handling: Plate link conveyor belts are employed in packaging and material handling systems to transport items between different processing stations. They are commonly used in industries like pharmaceuticals, cosmetics, and logistics, where precise and reliable movement of products is required.
● Recycling and Waste Management: Plate link conveyor belts are utilized in recycling and waste management facilities to transport and sort different types of materials. They can handle bulky and irregularly shaped items, such as plastic bottles, cans, and scrap metal, effectively contributing to the recycling process.
● Mining and Quarrying: Plate link conveyor belts are suitable for heavy-duty applications in the mining and quarrying industry. They can transport bulk materials, including ores, coal, gravel, and aggregates, over long distances and through challenging terrains.
● Glass Manufacturing: Plate link conveyor belts are used in glass manufacturing plants for handling glass sheets, bottles, and other glass products. The flat and smooth surface of the plates prevents scratches or damage to the delicate glass surfaces during transportation.
● Wood Processing: Plate link conveyor belts are employed in the wood processing industry for moving logs, lumber, and wooden panels. They provide a stable and reliable conveying solution that can withstand the heavy weight and rough surfaces of wood products.
● Textile Industry: Plate link conveyor belts are utilized in the textile industry for the transportation of fabrics, garments, and other textile materials. They offer a non-slip surface that prevents material slippage during conveying, ensuring efficient and reliable movement.
