| Material: | 100% Polyester | Width: | 0.4 To 3m |
|---|---|---|---|
| Length: | Customized As Per Your Requriement. | Thickness: | 2 Mm |
| Technique: | Woven | Color: | Blue |
| High Light: | anti static polyester mesh conveyor belt,electronics industry polyester mesh conveyor belt,high tensile strength polyester mesh belt |
||

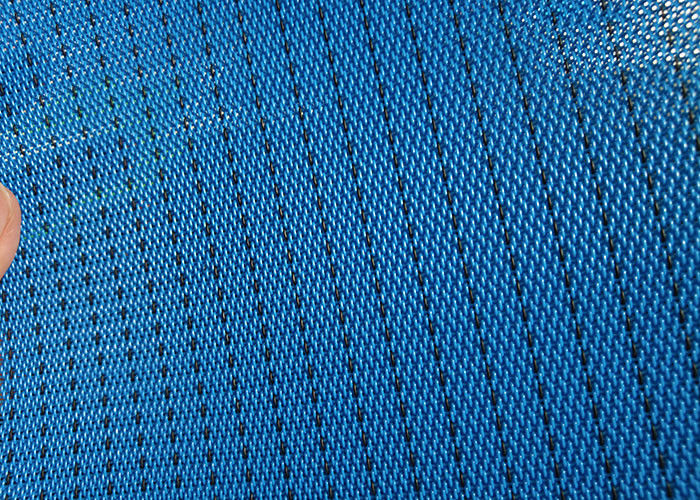

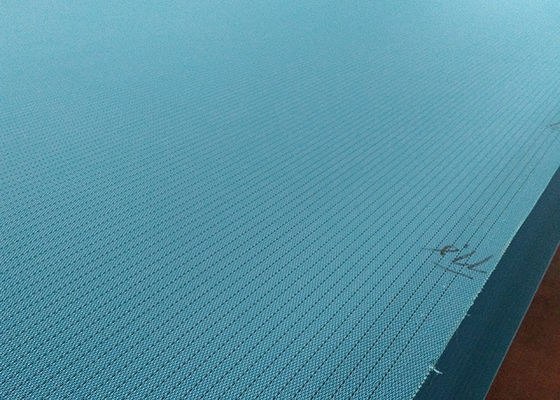

High Tensile Strength Anti Static Polyester Mesh Conveyor Belt For Electronics and Semiconductor Industry
Description:
An anti-static polyester mesh conveyor belt is a specialized type of conveyor belt that is designed to prevent static electricity buildup and discharge. It is commonly used in industries where static electricity can cause problems, such as the electronics, printing, packaging, and textile industries.
Specification:
| Model No. |
Wire diameter of Waft (mm) |
Wire diameter of Weft (mm) |
Density (wire/centimeter) Waft
|
Density (wire/centimeter) Weft |
Strength(N/cm) Area of the surface
|
Permeability (m3/m2h)
|
| 14804 | 0.65 | 0.80 | 14.8 | 7.2 | ≥2000 | 6800 |
| 14804-1 | 0.65 | 0.80 | 14.8 | 7.2 | ≥2000 | 15840 |
| 14708 | 0.64 | 0.70 | 15 | 8 | ≥2000 | 11200 |
| 12708 | 0.46x0.68 | 0.70 | 14.1 | 7.3 | ≥2000 | 8000 |
| 4106 | 0.50 | 0.50 | 23 | 12.6 | ≥2200 | 6800 |
| 3868 | 0.70 | 0.90 | N/M | N/M | ≥2000 | 17000 |
| 4080 | 0.90 | 1.10 | N/M | N/M | ≥2300 | 19000 |
Application :
Electronics and semiconductor industry: Anti-static polyester mesh conveyor belts are widely used in the electronics and semiconductor industries to handle and transport electronic components, circuit boards, and other sensitive materials. They help prevent static electricity buildup and minimize the risk of ESD, which can damage or impair electronic devices.
Printing and packaging industry: These conveyor belts find applications in the printing and packaging industry for the transportation of paper, cardboard, films, and other packaging materials. They help prevent static charges from building up on the belt surface, reducing the attraction of dust and improving the quality of printed or packaged products.
Textile industry: Anti-static polyester mesh conveyor belts are utilized in the textile industry for processes like drying, curing, and heat setting of fabrics. They help prevent static electricity from affecting the textile materials, reducing the risk of fiber clinging, static shocks, or unwanted electrostatic attraction.
Food processing industry: In the food processing industry, anti-static polyester mesh conveyor belts are employed in applications where static electricity can pose a risk or affect product quality. They are used for conveying food products like baked goods, snacks, and confectionery, ensuring safe and hygienic handling.
General industrial applications: These conveyor belts can be used in various general industrial applications where static electricity can be a concern. Examples include conveying plastic parts, rubber products, glass, ceramics, and other materials that are prone to static charge buildup.

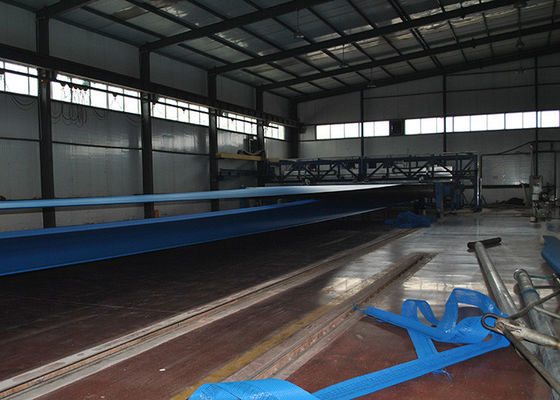

Our Factory :
