Filtration of Fluids Stainless Steel Sintered Filter Mesh 316L Stainless Steel Corrosion Resistance Sintered Filter

Sintered Perforated Mesh with High Strength and Filtration Precision

With higher strength, sintered perforated mesh is a good solution for particles filtering under high pressure environment.

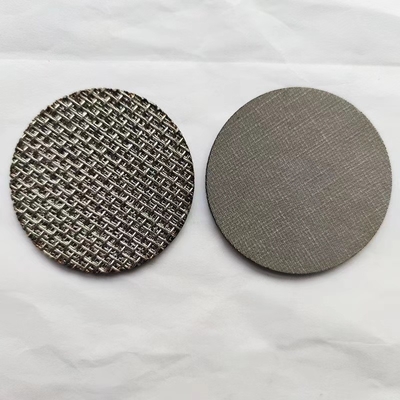

Sintered perforated mesh, also called sintered mesh from perforated metal, is made of several layers of stainless steel wire meshes and one perforated metal layer. Typical sintered perforated mesh includes five layers: perforated layer, buffer layer, fine mesh layer, protective layer and filter layer, and perforated metal as reinforcement layer supports the filter structure. Featured by high mechanical strength and filtration precision, sintered perforated mesh is widely used in various industries where the particles need to be filtered under extremely high pressure environment.

1.High strength and stability.

2.High filtration precision.

3.Corrosion and rust resistance.

4.High temperature resistance.

5.Easy to fabricate and clean

---

Specification

Material	Stainless steel 304, 316, 316L or alloy steel hastelloy, monel, inconel
Standard size (mm)	300 × 1000, 300 × 1500, 500 × 1000, 600 × 1200, 1000 × 1000, 1000× 1500, 1200 × 1200, 1200 × 1500.
Perforated sintered mesh thickness	2.0-5.3 mm.
Operating temperature	-20 °C to 600 °C.
Common type	Sintered perforated mesh plate, sintered perforated mesh tube.
Perforated layer mesh opening shape	Round, square, rectangular.
