| Material: | 100% Polyester | Weave Type: | Plain Weave |
|---|---|---|---|
| Color: | White,blue | Name: | Polyester Monofilament Mesh Polyester Plain Weave Belt Polyester Plain Weave Linear Mesh Belt |
| Delivery: | Within 10 Days | Length: | According Do Your Request |
| Size: | Customized The Size | ||
| High Light: | Wear Resisting Polyester Mesh Belt,Polyester Mesh Belt 1200N/Cm,polyester conveyor belt 1200N/Cm |
||

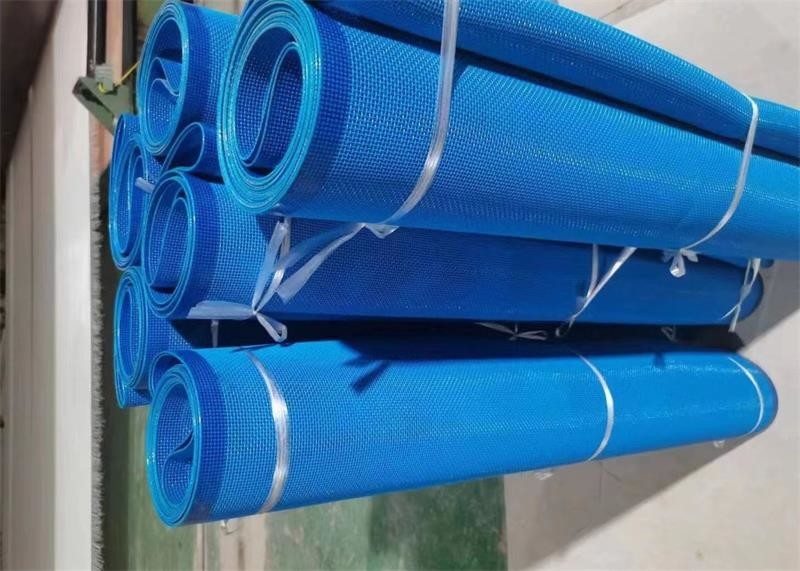

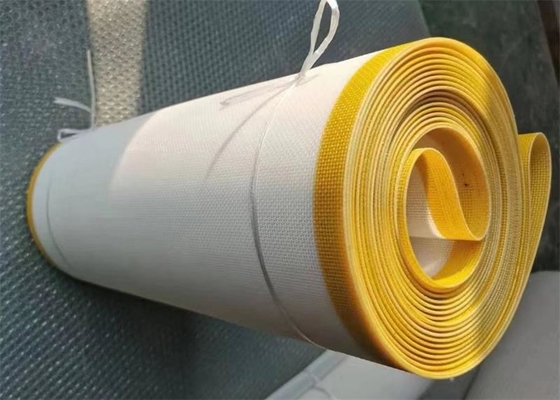

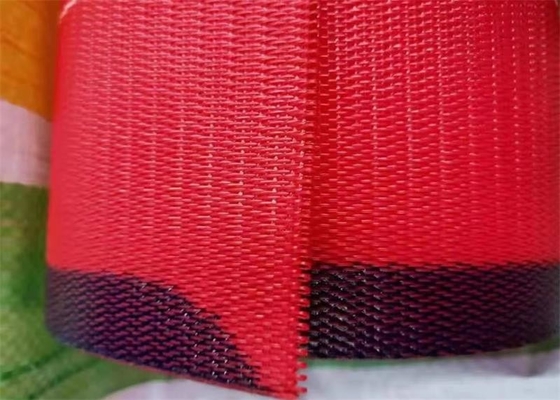

Polyester monofilament mesh polyester plain weave belt polyester plain weave linear mesh belt
Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric,which widely used in special lines,such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt.
Application:
Polyester plain weave mesh belt Series Suitable for drying quantitative larger wrapping paper, paper, paperboard and pulp board. Widely used in papermaking, coal, food, medicine, printing and dyeing and rubber products industry, can also be used as conveyor belt and composite machine supporting belt.
Specification:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
Feature :
