| Product Name: | Food Grade Monofilament Nylon Filter Mesh Cloth | Other Name: | Nylon Screen Filter Mesh |
|---|---|---|---|
| Color: | White | Weave Style: | Plain Woven Nylon Mesh |
| Mesh Opening: | 5-2000um | Mesh Count: | 4T-240T |
| Free Sample: | 1m Available | We Are Factory: | Yes |
| High Light: | Nylon Filter Mesh 500Micron,non rusting Nylon Filter Mesh,non rusting 500 micron nylon mesh |
||
Nylon Woven Filter Screen Bolt Mesh With 2 10 20 25 30 40 45 50 60 70 80 100 150 180 200 220 300 500 Micron 220u 100Micron
1. Introduction of Nylon Filter Mesh

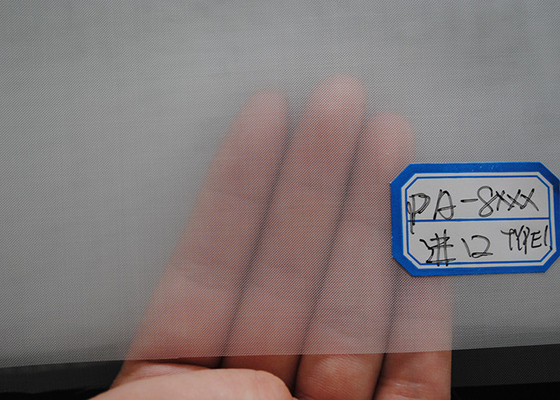

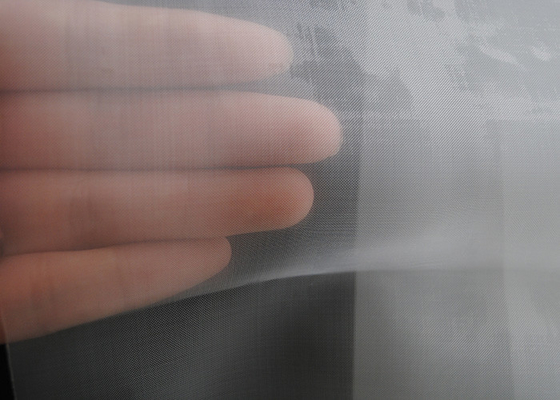

Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications.
We can supply 0.05m to 3.65m wide, 1500m long jointless nylon filter mesh (nylon filter cloth), to meet the industry-specific applications. With more than 30 years experience of filter mesh manufacturing, We can make more than 10 types of processed nylon mesh products, such as nylon mesh filter discs, nylon mesh filter sheets, filter tubes, nylon mesh filter bags, nut & juice filter bags, etc. Customized products are accepted.
Our nylon filter mesh has passed food grade test and can be used for the collection of algae & cels, particle analysis & filtration, paint monitoring, medical filtration(blood filtration), etc.
2. Application of Nylon Screen Filter Mesh
● Air purifier filter
● Air conditioner filter
● Circulating/waster water filter
● Blood filter transfusion
● Coffee filter
● Waste water treatment
● Mining
3. Specification of Nylon Filter Cloth
| Material | 100% nylon monofilament |
| Color | White, black or customized |
| Width | 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm, special width can be customized |
| Length | 30-100m/roll or as your request |
| Mesh count | 4-240T |
| Mesh Count/inch | 10-600 mesh/inch |
| Mesh Opening | 5-2000 micron |
| Sample | 1m available |
4. Advantages of Nylon Bolting Cloth
● Excellent alkaline resistance.
● High precision,unifirm thread diameter
● It has a working temperature of up to 120 degrees ℃
● Stable chemical and physical properties
● Available in disc, tube, bag and special shapes
● Compliance with food grade
