High Tensity Polyester Bolting Cloth 15-420 Mesh For Screen Printing

Name: High Tensity Polyester Bolting Cloth 15-420 Mesh For Screen Printing
Brand: Anping County Comesh Filter Co.,Ltd
SKU: CO-LO
Price: 3.60 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Comesh

Certification: FDA NSF

Model Number: CO-LO

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Price: USD 1.6-6USD

Packaging Details: Wooden box

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 300000 Meters Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                    420 mesh polyester bolting cloth, high tensity polyester bolting cloth, 15 mesh for screen printing


Material:	Polyester Mesh	Color:	Black White Yellow
Size:	Customized	Mesh:	Customized

Material:	Polyester Mesh
Color:	Black White Yellow
Size:	Customized
Mesh:	Customized

Product Description

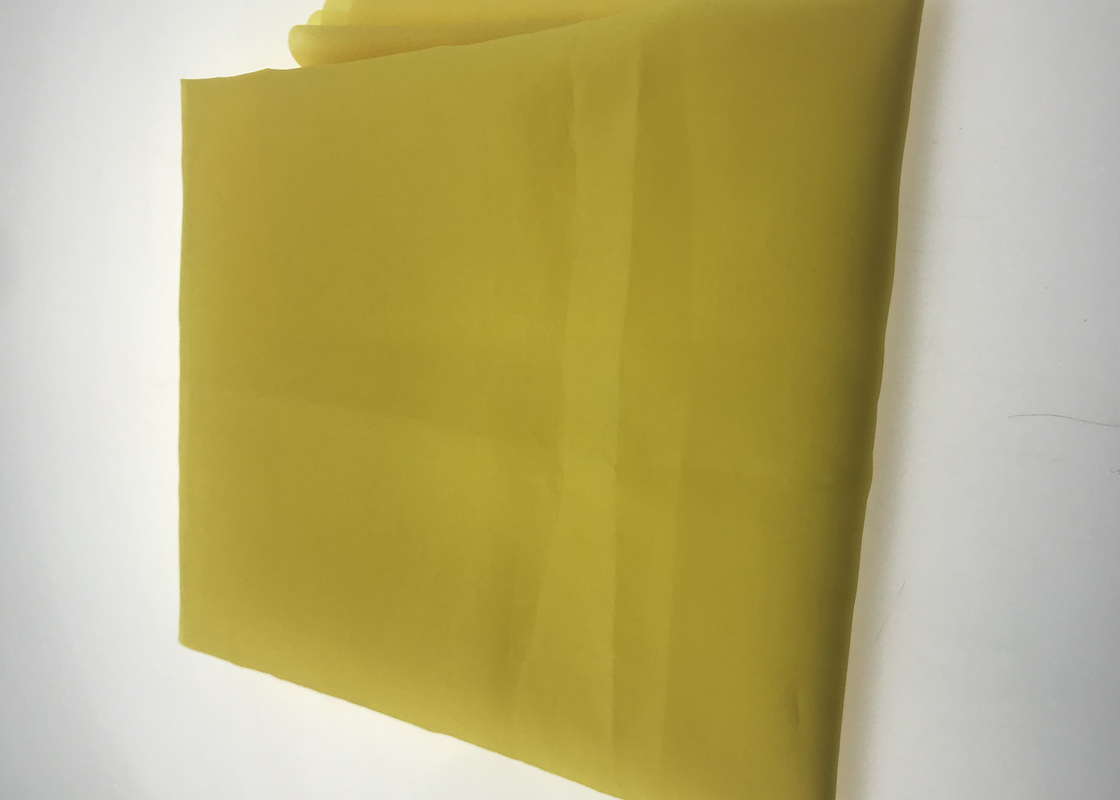

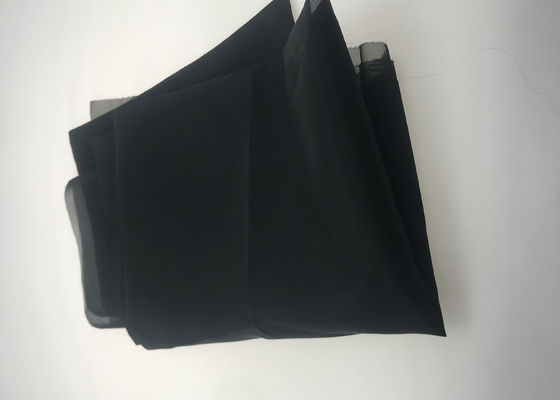

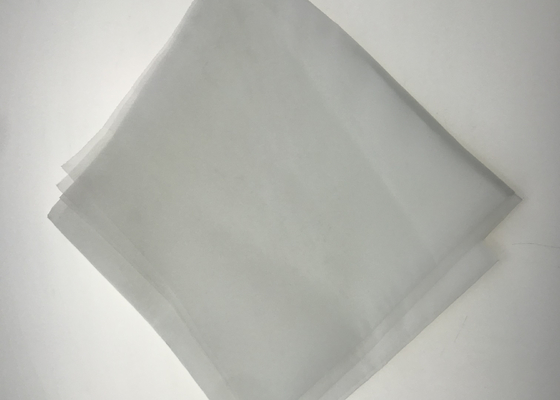

Polyester Silk Screen Printing Mesh

1. Product Information:
Plain Weave 1:1
Weaved by P7110 and P7150 Sulzer Looms, total 56 sets

Polyester screen printing mesh is one of our widely used printing fabrics. It is constructed with woven fabric. It can be used for graphics printing, garment printing, textiles, flat films according to customs' request or different application.

1. Material: 100%Polyester

2. Shape of screen mesh fabric: tubular

3. Function: Printing

4. Mesh count: 15-420 mesh

5. Size available: standard and custom sizes

6. Characteristic :high tensity,low elongation,excellent dimensional stability

Mesh count:6T(15mesh/inch)-165T(420mesh/inch)
Color:white color,yellow color
2meters of free sample available at customres requirement.
fast delivery time as we have 1000-2000meter stocks for normal standard size.

Maishi Monofilament Polyester Screen Printing Mesh Fabric
model	mesh count	APERTURE	THREAD DIAMETER	OPENING	thickness	INK THROUGH VOLUME THEORETICALLY
model	mesh/inch	micron	micron	%	micron	cm 3 /m 2
6-400	15	1300	400	65	780-810	560
10-250	25	700	250	49	508-518	355
12-250	30	610	250	53	495-505	305
15-250	38	467	250	49	489-501	213
18-150	45	410	150	53	255-275	138
21-150	55	330	150	46	260-280	123
24-100	60	316	100	57	136-145	109
24-120	60	302	120	51	230-240	104
30-120	75	213	120	41	235-345	102
32-100	80	212	100	46	145-155	69
36-90	90	183	90	44	160-165	65
39-55	100	195	55	56	88-96	55.0
39-80	100	166	80	43	125-130	59.0
43-80	110	147	80	40.8	127-132	53
48-70	120	135	70	41	108-120	45.5
54-55	135	118	55	47	88-96	44.5
54-64	135	115	64	38.5	95-105	38.9
54-70	135	108	70	34	108-120	40
58-55	145	118	55	38	89-94	39.5
61-64	155	105	64	42	98-107	33
64-45	160	105	48	43	73-82	36.5
64-55	160	98	55	38	85-95	36.1
64-64	160	88	64	30	95-105	30.7
68-55	175	85	55	34	85-90	29
72-48	180	90	48	36	75-84	33.1
77-55	190	81	55	30	88-97	26.6
80-45	200	75	45	36	65-74	27.7
80-48	200	72	48	33	75-84	28.7
90-48	230	56	48	25	77-85	23.5
100-40	250	58	40	33	62-71	21.3
110-40	280	48	40	27	65-71	18.4
110-34	280	54	34	35.5	52-57	20.2
120-34	305	45	34	30.5	52-57	18.4
140-34	355	31	34	19.5	56-62	14.4
150-31	380	36	31	29	43-47	13.1
150-34	380	30	34	20.5	56-62	14.9
165-31	420	31	31	23	52-58	12.88
D (DENIER) =MICRON 9D=31MICRON, 12D=34MICRON, 16D=40MICRON, 22D=48MICRON, 30D=55MICRON; 40D=64MICRON, 50D=70MICRON, 60D=80MICRON, 80D=90MICRON, 100D=100MICRON Notice: Other abnormal specification can be produced if the quantity more than 3000sqm

2. Production process

During production, first we put the warp wires on the beam, drawing the warp wires into heddle and reed. Then our experienced weaver will start weaving mesh according to orders.

Initial survey is taken during and after weaving. Then the heat setting treatment and physical properties inspection will be done before we get tentative finished rolls (normally 60-500 meters rolls).

In the end, after the final inspection, we will cut the mesh into small rolls (20m-50m) according to customer orders.

High Tensity Polyester Bolting Cloth 15-420 Mesh For Screen Printing

3. Packing

For High Tension Screen Mesh for Printing, we have two kind of packing type:

1.Fold the mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.

2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.

Folding packing
