| Material: | Stainless Steel ,PTFE | Features: | Good Air Permeability ,Fantastic Hydrophobic Performance |
|---|---|---|---|
| Size: | 1.0meter By 1.2meter Per Sheet | Sample: | Available |
| High Light: | astm stainless steel wire mesh,1x1.2m stainless steel wire mesh,green ptfe coated ss wire mesh |
||

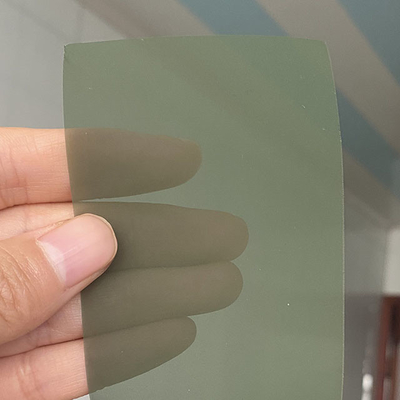

Custom Stainless Steel Polyester Wire Hydrophobic Woven Filter Mesh Fabric Fantastic Performance Green PTFE Coated

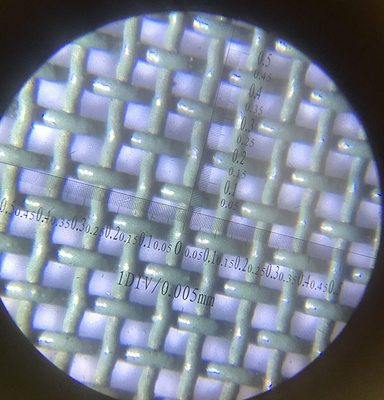

PTFE coated wire mesh refers to woven wire mesh which is coated with fine resin. The wire mesh, with mesh size of 100 per inch, 200 per inch or 325 per inch, is woven from stainless steel wire diameter which is heavier than that used to weave bolting cloth. The () coating serves to increase the hydrophobic properties of the filter by allowing the passage of fuel but inhibiting the passage of water in the coalescer-based system. Finished products are specific used for filter devices, especially for industrial cartridge filters in high-temperature and chemical-resistant applications.
| material | wire mesh:stainless steel Coating:Polytetrafluoroethylene () resin |
| Temperature Range | -73 °C to 260 °C. |
| Standard | ASTM E2016-11, UNS S31600. |
| package | packed in roll, wrapped with moister-proof paper, put into wooden cases, or according to your requirements. |
Specification of PTFE coated wire mesh
| Item | mesh/inch | Wire diameter | Opening | Opening Microns | Open area | Weight | ||
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | % | lb/sq. ft | ||||
| BPM-100 | 100 | 0.0045 | 0.1143 | 0.1397 | 140 | 30 | 0.1400 | |
| BPM-200 | 200 | 0.0021 | 0.05334 | 0.07366 | 74 | 33.6 | 0.0600 | |
| BPM-325 | 325 | 0.0014 | 0.03556 | 0.04318 | 43 | 30 |
0.1400 |
|
Features of Hydrophobic Woven Filter Mesh Fabric:
Applications of PTFE Coated Wire Mesh:

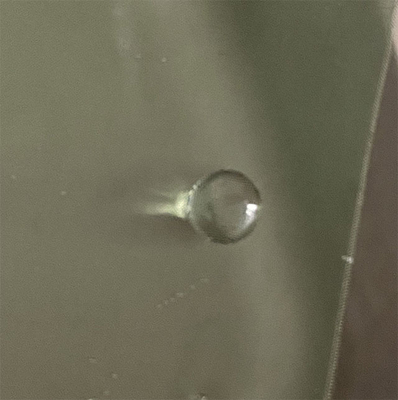

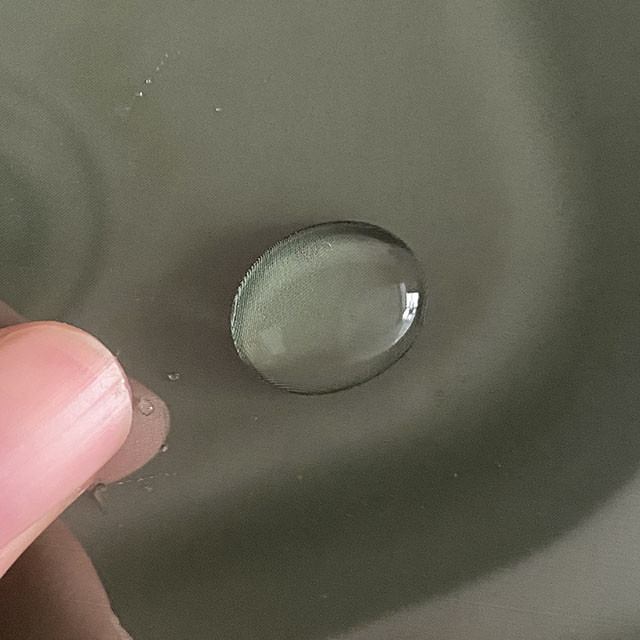

PTFE is a food-grade coating, but this type of wire mesh can be used in a wide variety of industries for several different applications including coalescing filtration. PTFE is a hydrophobic coating, meaning when water passes through PTFE wire mesh, it will bead onto the surface, allowing other substances to pass through. It is effective in separating water from various kinds of fuel and is often used in the manufacturing industry to filter liquids and gases.
PTFE coated mesh also has a wide range of industrial and scientific uses such as paper fabrication and petroleum purification. In addition to filtration and purification, this type of mesh is often used to separate and dry small particles. Because PTFE coated mesh allows for air to pass through while repelling moisture, it is sometimes used for water-resistant speakers, microphones, and other devices with similar requirements.
