| Material: | Stainless Steel 304,316,316L | Roll Size: | 30meter Per Roll In Length,1.02m Or 1.22m In Width |
|---|---|---|---|
| Application: | Filtering,protection,arts And Crafts And So On | Features: | Corrosion Resistant |
| Highlight: | crimped wire mesh,stainless steel mesh cloth |
||

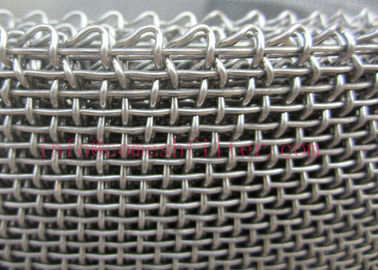

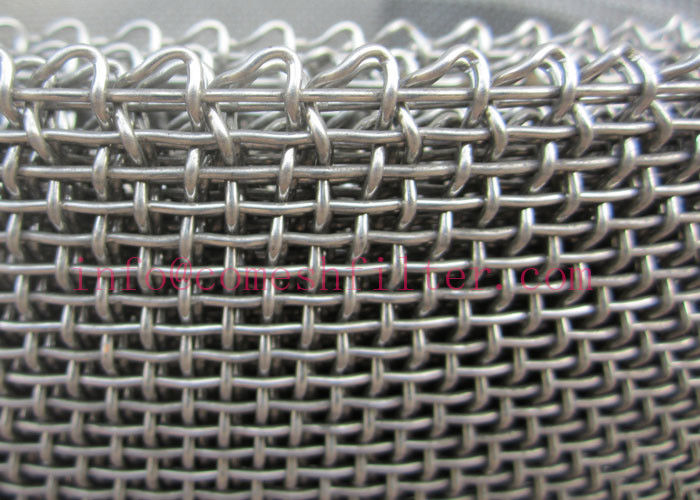

FDA SS Woven Wire Mesh 304 316 Woven Stainless Steel Wire Mesh
stainless steel wire mesh is made from stainless steel wire.
Sample can be supplied
From a cost standpoint, it is usually the most attractively priced of most readily available stainless steel mesh
alloys in the industry, especially when taking into consideration its lifecycle.
Specifications:
| Stainless Steel Plain / twill weave wire mesh | ||||||
| Mesh/inch | Wire diameter | Aperture | Open area(%) | Weight(KG/㎡) | ||
| inch | mm | inch | mm | |||
| 1 | 0.080 | 2.03 | 0.920 | 23.37 | 92.0 | 2.00 |
| 2 | 0.063 | 1.60 | 0.437 | 11.10 | 87.4 | 2.50 |
| 3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.70 |
| 4 | 0.047 | 1.20 | 0.203 | 5.16 | 81.2 | 2.70 |
| 5 | 0.041 | 1.04 | 0.159 | 4.01 | 79.5 | 2.60 |
| 10 | 0.024 | 0.60 | 0.076 | 19.4 | 74.9 | 1.80 |
| 12 | 0.020 | 0.50 | 0.064 | 1.62 | 75.9 | 1.50 |
| 14 | 0.020 | 0.50 | 0.052 | 1.314 | 71.9 | 1.75 |
| 16 | 0.018 | 0.45 | 0.045 | 1.137 | 71.2 | 1.60 |
| 18 | 0.016 | 0.40 | 0.040 | 1.01 | 69.4 | 1.40 |
| 20 | 0.009 | 0.24 | 0.040 | 1.03 | 76.0 | 0.57 |
| 20 | 0.012 | 0.30 | 0.038 | 0.970 | 72.2 | 0.90 |
| 30 | 0.012 | 0.30 | 0.0215 | 0.547 | 63.9 | 1.35 |
| 30 | 0.0094 | 0.24 | 0.0243 | 0.620 | 72.1 | 0.84 |
| 40 | 0.0098 | 0.25 | 0.015 | 0.385 | 36.74 | 1.25 |
| 50 | 0.0079 | 0.20 | 0.0121 | 0.308 | 36.7 | 1.00 |
| 60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
| 60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
| 80 | 0.0047 | 0.12 | 0.0078 | 0.198 | 38.7 | 0.58 |
| 80 | 0.0055 | 0.14 | 0.0069 | 0.177 | 45.5 | 0.76 |
| 100 | 0.0039 | 0.10 | 0.006 | 0.154 | 59.8 | 0.50 |
| 100 | 0.0043 | 0.11 | 0.0056 | 0.144 | 55.1 | 0.60 |
| 120 | 0.0027 | 0.07 | 0.0056 | 0.142 | 67.7 | 0.29 |
| 120 | 0.0031 | 0.08 | 0.0052 | 0.132 | 38.7 | 0.38 |
| 150 | 0.0024 | 0.06 | 0.0043 | 0.109 | 41.6 | 0.27 |
| 165 | 0.0018 | 0.045 | 0.0043 | 0.109 | 50 | 0.167 |
| 180 | 0.0019 | 0.05 | 0.0036 | 0.091 | 64.5 | 0.22 |
| 180 | 0.0023 | 0.06 | 0.0032 | 0.081 | 57.4 | 0.32 |
| 200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
| 200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
| 250 | 0.0012 | 0.03 | 0.0028 | 0.072 | 49.8 | 0.11 |
| 250 | 0.0016 | 0.04 | 0.0024 | 0.062 | 36.9 | 0.20 |
| 270 | 0.0014 | 0.035 | 0.0023 | 0.059 | 60 | 0.16 |
| 270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
| 300 | 0.0012 | 0.03 | 0.0022 | 0.055 | 57 | 0.13 |
| 325 | 0.0014 | 0.035 | 0.0017 | 0.043 | 55.3 | 0.20 |
| 400 | 0.0012 | 0.03 | 0.0013 | 0.034 | 52.7 | 0.18 |
| 500 | 0.0009 | 0.025 | 0.001 | 0.025 | 50.7 | 0.15 |
| 635 | 0.0007 | 0.020 | 0.0008 | 0.020 | 55.0 | 0.10 |
Features of stainless steel woven wire mesh:
Wire Mesh has the strength to perform in industrial settings, the aesthetics to enhance architectural designs, and the
versatility to fulfill a variety of functions
304 SS displays good oxidation resistance to a temperature of approximately 1600°F in intermittent service and to a
temperature of 1700°F in continuous service
non-magnetic in the annealed condition
Applications of wire mesh stainless steel:
Mining
Quarrying
Beer brewing
Water filtration
Particle separation
Automotive
Basket fabrication
Refinery & oil field
Aerospace
Food processing
Scientific & laboratory use
