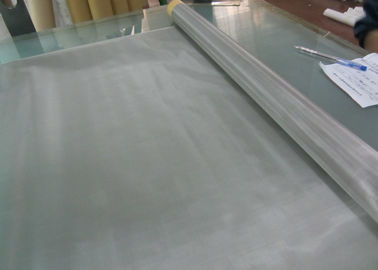

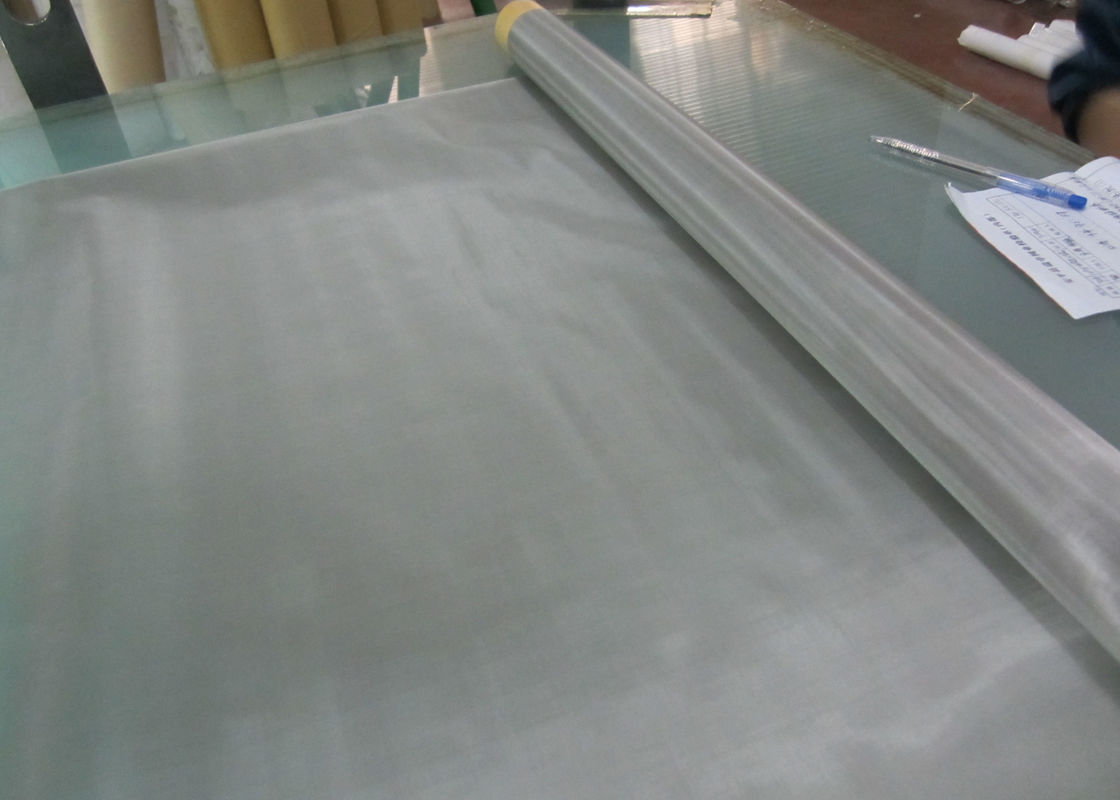

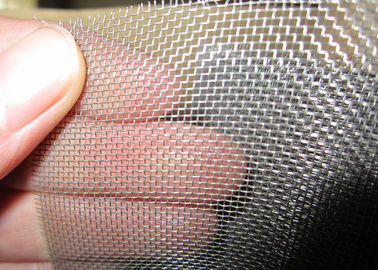

304N 200 Mesh Stainless Steel Screen Printing Mesh Usually 30m / Roll Length

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Features:

High Tension And Good Heat-melting Resistance

Product Name:

304N 200mesh Stainless Steel Printing Screen Mesh

Length:

Usually 30m/roll

Width:

Usually1M

Sample:

Avaliable

Usage:

Printing

Packaging Details:

Waterproof paper inside ,and air bubble film outside,then put them into plywood case.

Highlight:

Product Description

304N 200mesh stainless steel printing screen mesh

Description

1. Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc

2. Wire Diameter: 0.015-2.8mm

3. Mesh count: Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3500mesh

Features

High tension: higher tension than the common polyester mesh, and the property is stable.
Low elongation: it has very low elongation under high tension.
Non- electrostatic: ensures the safety of printing.
Good heat-melting resistance: making it suitable for heat-melting ink.
Good solvent resistance: also ensures the safety of printing.

Application

In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.

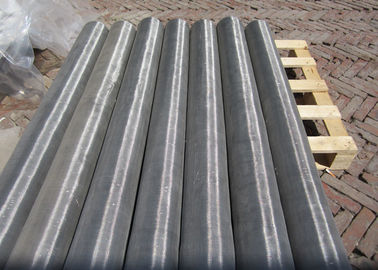

Package Type:
a.High mesh count:Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or palletb.
b.Low mesh count:Packed in rolls,Then with waterproof and woven bags,Finally in wooden case
c.Sheet shape:Inside with plastic film and outside with a small wooden case

Production process

	1.Testing wire diameter		2.Automatic warp beaming machine
	3.Making the mesh		4.Cleaning the mesh
	5.Calendering making screen thinner and obtaning filat		6.Package: Waterproof paper inside,and air bubble film outside,then put them into plywood case, or according to your requirements.
