| Brand Name: | COMESH |
| Model Number: | CO-Hel |
| MOQ: | 1 roll |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000 rolls per month |

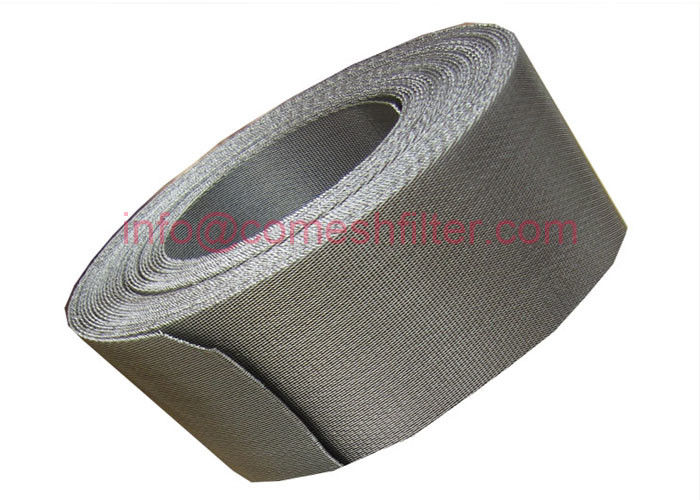

plastic extruder filter screens,polypropylene filtering 152 X 24
260/40 120/18 mesh sus302 stainless steel reverse dutch weave 172mm 150mm width wire mesh for Plastic filtration
Material: Stainless steel 304,316,316l,310s,301,302,303,305,317l,347,330,333.
Speal Material: Hastelloy C-276, C-22, C-2000, B-2, B-3; Monel 400,405,K500; Yinkeneier nickel alloy 600,601,625,718,X750,800,825;
Application: for Plastic extruder
larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave,
twilled dutch weaves
Appplications of ss 304 or 201 extruder screen wire mesh for plastic recycle :
mainly used in filtering of plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.
Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
specifications of ss 304 or 201 extruder screen wire mesh for plastic recycle:
| Mesh/inch | Wire Dia.(mm) | Width(mm) | Length/Roll(m) |
| 72/15 | 0.45/0.55 | 97---400 | 10/20 |
| 120/15 | 0.35/0.45 | 97---400 | 10/20 |
| 132/17 | 0.32/0.45 | 97---400 | 10/20 |
| 150/17 | 0.3/0.45 | 97---400 | 10/20 |
| 152/24 | 0.27/0.4 | 97---400 | 10/20 |
| 152/30 | 0.27/0.4 | 97-400 | 10/20 |
| 170/17 | 0.27/0.45 | 97-400 | 10/20 |
| 180/18 | 0.27/0.45 | 97-400 | 10/20 |
| 200/40 | 0.17/0.27 | 97---400 | 10/20 |
| 260/40 | 0.15/0.25 | 97---400 | 10/20 |
Features of ss 304 or 201 extruder screen wire mesh for plastic recycle:
Resistant to abrasion
Durability
Sturdiness
Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
High strength, good tensiontoughness and abrasion performance, durable in use.
reverse Dutch Twilled Weave mesh:
each weft wire goes through two warp wires alternatively.
The Reverse Dutch Twill Weave allows to use wires
with larger diameters and gives better stability and
strenght to the weft.
reverse Plain dutch weave mesh
it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance
