304 Or 201 Stainless Steel Wire Mesh For Plastic Recycle , Max 400mm

Brand Name:	COMESH
Model Number:	CO-Hel
MOQ:	1 roll
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	2000 rolls per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHina

Certification:

SGS

Name:

Extruder Screen Wire Mesh For Plastic Recycle

Usage:

Plastic Filtering Band

Material:

Ss 304 Or 201

Width:

MAX 400mm

Packaging Details:

waterproof paper inside,plywood case outside

Highlight:

crimped wire mesh

stainless steel mesh cloth

Product Description

ss 304 or 201 extruder screen wire mesh for plastic recycle

larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave,
twilled dutch weaves

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Appplications of ss 304 or 201 extruder screen wire mesh for plastic recycle :

mainly used in filtering of plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.

Specifications of ss 304 or 201 extruder screen wire mesh for plastic recycle:

Mesh/inch	Wire Dia.(mm)	Width(mm)	Length/Roll(m)
72/15	0.45/0.55	97---400	10/20
120/15	0.35/0.45	97---400	10/20
132/17	0.32/0.45	97---400	10/20
150/17	0.3/0.45	97---400	10/20
152/24	0.27/0.4	97---400	10/20
152/30	0.27/0.4	97-400	10/20
170/17	0.27/0.45	97-400	10/20
180/18	0.27/0.45	97-400	10/20
200/40	0.17/0.27	97---400	10/20
260/40	0.15/0.25	97---400	10/20

Features of ss 304 or 201 extruder screen wire mesh for plastic recycle:

Resistant to abrasion
Durability
Sturdiness
Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
High strength, good tensiontoughness and abrasion performance, durable in use.

reverse Dutch Twilled Weave mesh:
each weft wire goes through two warp wires alternatively.
The Reverse Dutch Twill Weave allows to use wires
with larger diameters and gives better stability and
strenght to the weft.

reverse Plain dutch weave mesh
it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance

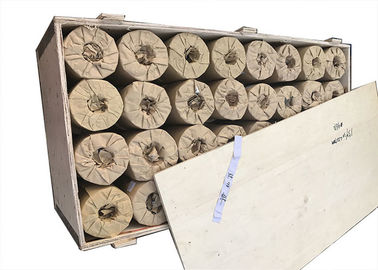

sample and packing:

samples extruder screen mesh can be supplied for testing.
