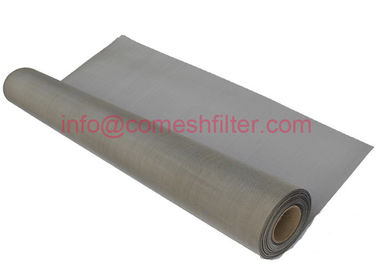

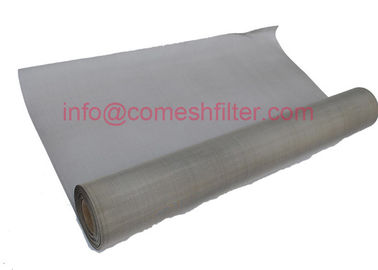

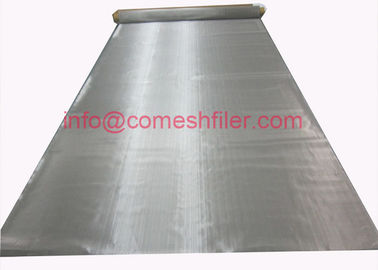

Plain Dutch Weave Metal Filters Steel Canvas Reps 12 X 64 Mesh Stainless Steel Filter Cloth

Detail Information

Place of Origin:

China

Certification:

SGA

Name:

Plain Dutch Weave Metal Filters Steel Canvas Reps 12 X 64 Mesh ,304 316 Stainless Steel Filter Cloth

Material:

Carbon Stee, Stainless Steel 304,316,316L

Application:

Filtering

Advantage:

High Strength,stable Structure

Packaging Details:

plywood case

Highlight:

Product Description

plain dutch weave metal filters steel canvas reps 12 x 64 mesh ,304 316 stainless steel filter cloth

This kind of mesh is also called stainless steel dutch weave wire mesh.

plain weave or twill weave

width:1.02meter or 1.22meter, or customized

usually 30meter per roll.

specifications of stainless steel dutch weave wire mesh

Stainless Steel Dutch Weave Wire Mesh
Weave Type	Mesh Count	Warp Wire in Inches	Shute Wire in Inches	Absolute Micron Rating	Nominal Micron Rating	Weight Per 100 sq.'
PDW	8x20	0.014 0.36mm	0.0126 0.32mm	330-350	280	49 0.77
PDW	12x64	0.024 0.61	0.0165 0.42	270-290	200	84 3.94
PDW	14x88	0.02 0.51	0.013 0.33	220-240	150	75 3.31
PDW	16x80	0.0196 0.50	0.0134 0.34	225-235	140	79 3.31
PDW	24x110	0.015 0.38	0.01 0.25	115-125	80	55 2.59
PDW -	24x128	2 x .010	0.004	110-120	75	34
PDW	30x150	0.009 0.23	0.007 0.18	110-112	63	33 1.61
PDW -	30x150	2 x .009	.007"	95-113	60	33
PDW	40x200	0.007 0.18	0.0055 0.14	70-75	55	27 1.30
PDW	50x250	0.0055 0.14	0.0045 0.11	58-63	40	22 1
PDW	80x400	0.005 0.13	0.003 0.08	40-45	35	17 0.98
TDW	30x250	0.01 0.25	0.008 0.20	110-120	53	66 2.97
TDW	80x700	0.004 0.10	0.003 0.08	35-40	25	25 1.32
TDW	120x400	0.004 0.10	0.0025 0.06	50-55	40	15 0.66
TDW	165x800	0.0028 0.07	0.002 0.05	25-28	15	14 0.70
TDW	200x600	0.0024 0.06	0.0018 0.045	30	20	10 0.56
TDW	165x1400	0.0028 0.07	0.0016 0.04	16-20	10	14 0.76
TDW	200x1400	0.0028 0.07	0.0016 0.04	12-14	5	15 0.80
TDW	325x2300	0.0014 0.04	0.001 0.03	8-9	2	10 0.65
TDW	400x2800	0.001 0.03	0.0008 0.02	6-7	1	8 0.37
