Product Name: | Free Sample PTFE Coated Fiberglass Open Mesh Conveyor Belt For Food | Material: | Fiberglass |
---|---|---|---|
Mesh Size: | 1x1mm 2x2.5mm 4x4mm 10x10mm | Thickness: | 0.2-1.35mm |
Width: | 300-4200mm | Temp Resistance: | -140-360℃ |
Highlight: | FDA PTFE Mesh Conveyor Belt,FDA ptfe conveyor belt,1x1mm PTFE Mesh Conveyor Belt |

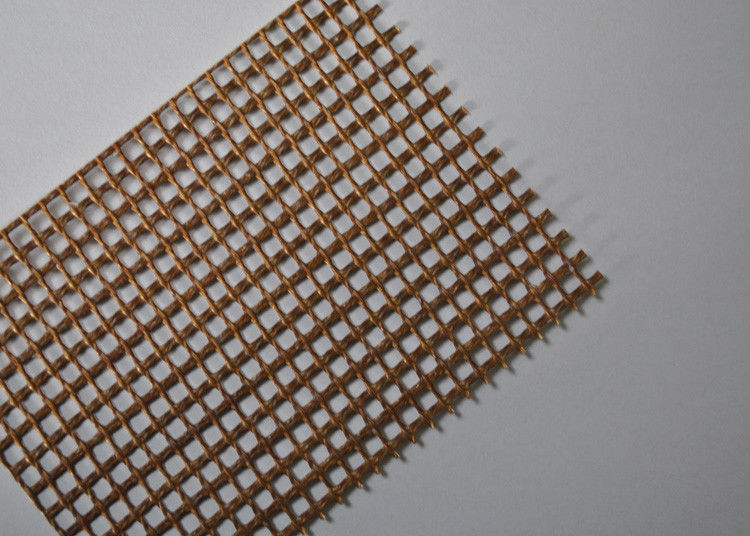

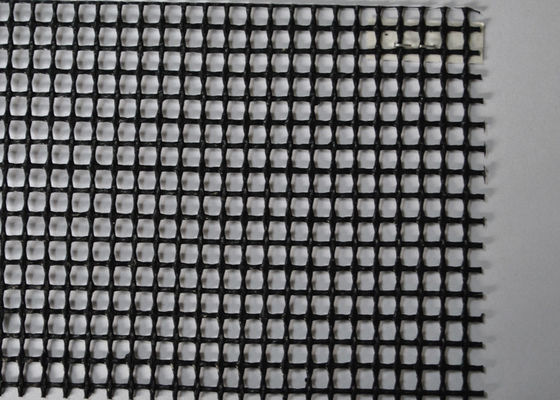

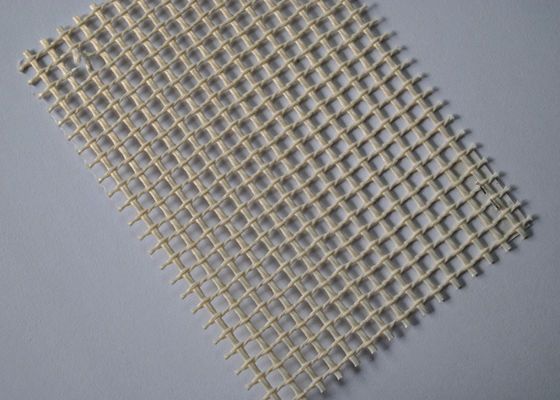

Free Sample PTFE Coated Fiberglass Open Mesh Conveyor Belt For Food
1. Specification:
a,Material: fiberglass
b,Mesh size:0.5-10mm
c,Width:300-4200mm
d,Temperature Resistance:-140-360℃
Model | Mesh Size | Material | Weight | Tem Resistance | Max Width | Tensile Strength |
1091C | 1X1mm | fiberglass | 480±5/m2 | -140-360℃ | 4200mm | 1600/1500N/5cm |
1092 | 2x2.5mm | fiberglass | 640±5/m2 | -140-360℃ | 4200mm | 2200/1500n/5cm |
1090 | 4x4mm | fiberglass | 480±5/m2 | -140-360℃ | 4200mm | 2100/1500N/5cm |
1090C | 4x4mm | fiberglass | 490±5/m2 | -140-360℃ | 4200mm | 2100/1500N/5cm |
1090S | 4x4mm | fiberglass | 580±5/m2 | -140-360℃ | 4200mm | 2200/1600N/5cm |
1090CS | 4x4mm | fiberglass | 590±5/m2 | -140-360℃ | 4200mm | 2300/1800N/5cm |
1090SH | 4x4mm | fiberglass | 745±5/m2 | -140-360℃ | 4200mm | 3200/2700N/5cm |
1090KH | 4x4mm | fiberglass+kevlar | 560±5/m2 | -140-360℃ | 4200mm | 4000/3700N/5cm |
1090K | 4x4mm | kevlar | 460±5/m2 | -140-360℃ | 4200mm | 4800/4500N/5cm |
1010 | 10x10mm | fiberglass | 450±5/m2 | -140-360℃ | 4200mm | 2800/1580N/5cm |
2. Application:
1) Drying machine for non-woven textile,textile printing,silk-printing and dyeing machine.
2) Shrinking machine for garment fabric,high-frequency and UV dryer
3) Conveyor belt for hot-air dryer,varius of food baking,quick-frozen machinery.
4) Oiling machine for paper glazing and waxing,plant engineerng
5) Separating sheet for hardboard production
