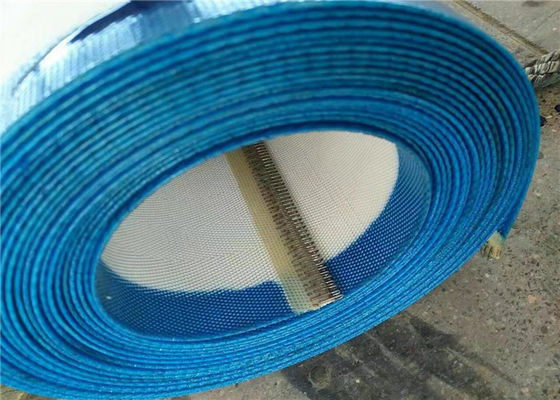

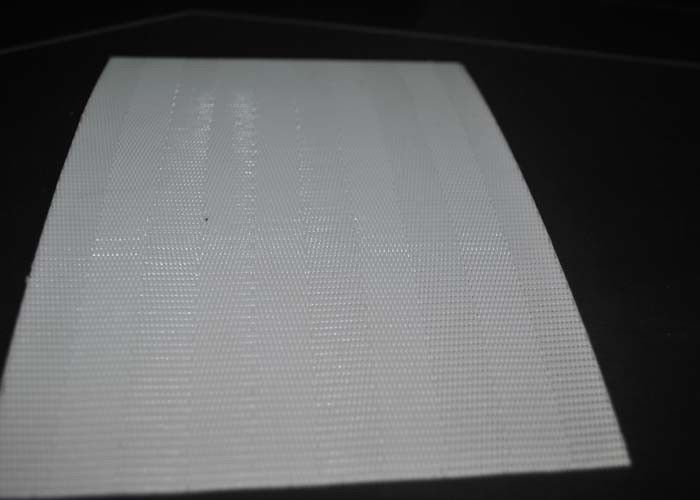

Paper Sludge Dewatering Polyester Mesh Belt HighTempreture Resistance

Name: Paper Sludge Dewatering Polyester Mesh Belt HighTempreture Resistance
Brand: Anping County Comesh Filter Co.,Ltd
SKU: PFM-Lyd
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Hebei,China

Brand Name: PFM

Certification: FDA

Model Number: PFM-Lyd

Payment & Shipping Terms

Minimum Order Quantity: 1 square meter

Price: Negotiable

Packaging Details: Plastic bag inside and plywood case outside or according to your need.

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T, Western Union, ，Paypal,Trade assurance

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    mesh material fabric, plain weave mesh


Name:	HighTempreture Resistance Paper Sludge Dewatering Polyester Mesh Belt	Color:	White, Blue, Red
Keyword:	Polyester Mesh Belt	Application:	Sludge Dewatering Belt

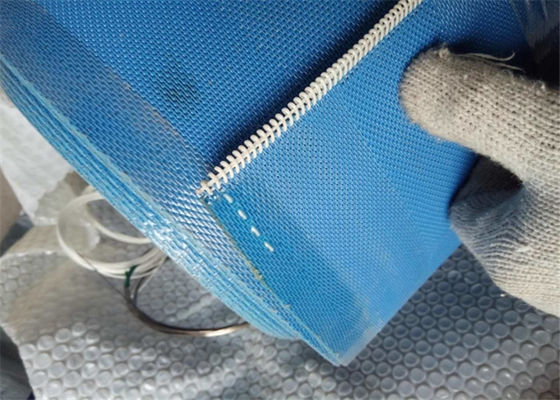

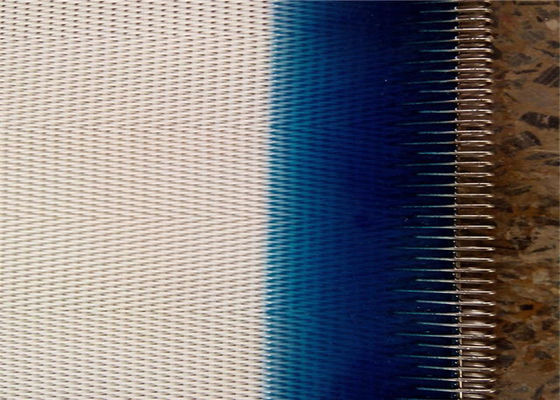

Material:	100%Polyester	Joint:	Endless,Steel-clip,Spiral Ring

Name:	HighTempreture Resistance Paper Sludge Dewatering Polyester Mesh Belt
Color:	White, Blue, Red
Keyword:	Polyester Mesh Belt
Application:	Sludge Dewatering Belt
Material:	100%Polyester
Joint:	Endless,Steel-clip,Spiral Ring

Product Description

HighTempreture Resistance Paper Sludge Dewatering Polyester Mesh Belt

Polyester Mesh Belt Advantage:

strength,
flat surface,
good air permeability,
stable property against heat and moisture,
low thermal shrinking,
less elongation at heat,
Resistant to most acids and organic solvents
Safe for food processing applications (USFDA approval)
Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions (polyester can suffer from hydrolysis in hot, humid conditions, typically in the presence of steam)

Polyester Mesh Belt Description:

The 2-shed and 3-shed Polyester plain Mesh/Plain woven Belt/Linear screen Cloth is mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making etc.
Also could be used in high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.
It have the characteristics of tear-resistance, shrink-resistance, high tempreture resistance and abrasion resistance etc.

Polyester Mesh Belt Application:

Polyester mesh belt can be used to sludge dewatering treating system, squeeze juice,Iron and steel industry sludge dewatering,Living water dewatering,Chemical sludge dewatering,Paper drying ,Paper sludge dewatering,Industrial sludge dewatering,Building materials industry,Pulp Washing

Polyester Mesh Belt Specification:

Model	Wire Diameter		Density Root/10cm		Air Permeability m³/m²h	Net Weight g/m²	Strength kg/cm	Used in
Model	Wrap	Weft	Wrap	Weft	Air Permeability m³/m²h	Net Weight g/m²	Strength kg/cm	Used in
14803	0.7	0.8	142	47-60	3900-8500	1400	240	Sludge,Squeeze juice
16803	0.7	0.8	156	46-50	6000	1400	265	Sludge,Squeeze juice
16904	0.75	0.9	156	47	8000	1800	280	Iron and steel industry sludge dewatering Living slude dewatering
121054	0.9	1.05	120	42	8000	1650	340	Iron and steel industry sludge dewatering
22903	0.5	0.9	220	50-55	9000	1200	200	Living slude dewatering
20703	0.5	0.7	200	70	10000	1000	185	Living slude dewatering
24504	0.5	0.5	240	130-140	8500	1180	220	Paper dry network
8903	0.9	0.9	78	50	8500	1430	210	industrial sludge dewatering
16704	0.7	0.7	160	90	12000	1350	165	Building materials dewatering
26908	0.5	0.9	26.4	69-75	5000	1364	240	Viscosit of the larger
12 Mesh	0.75	0.8	47	48		650	94	Paper pulp washing

Paper Sludge Dewatering Polyester Mesh Belt HighTempreture Resistance
