Product Details
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lis
Payment & Shipping Terms
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inside And Carton Case Outside Or According To Your Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Materail: |
Pa 66 |
Color: |
White, |
Name: |
Nylon Filter Mesh |
Hot Search: |
Nylon Filter Mesh |
Weave Type: |
Plain Weave |
Usage: |
Flour Milling |
Materail: |
Pa 66 |
Color: |
White, |
Name: |
Nylon Filter Mesh |
Hot Search: |
Nylon Filter Mesh |
Weave Type: |
Plain Weave |
Usage: |
Flour Milling |
PA-XX Nylon Filter Mesh With Alkali Resistance Used For Flour Millking

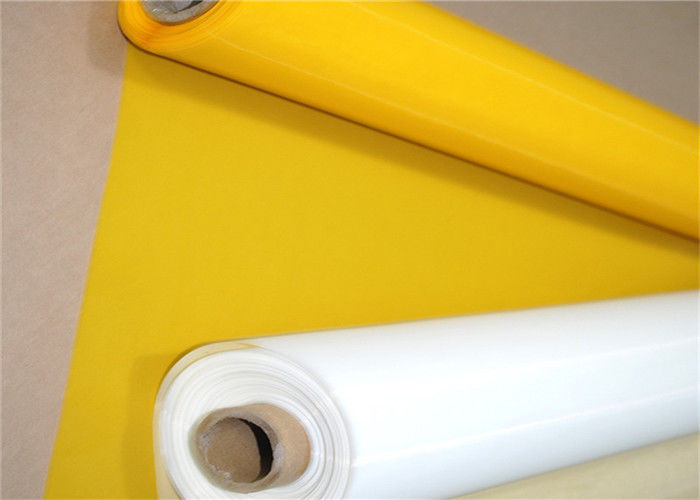

Description of nylon mesh
White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.
PFM flour mesh is special designed for milling industry,such as flour milling,corn milling,and other grains milling.
Features of nylon filter mesh
Application of nylon filter mesh
PFM nylon flour mesh includs PA-GG series,PA-XX series and PA-XXX series.PA-GG series flour mesh is mainly used in the coarse screening and peeling screening.With much more elasticity,PA-GG flour mesh can instead of stainless steel mesh.And the wear resistance of nylon flour mesh is better than polyester mesh.
PA-XX series flour mesh is most widely used in the flour milling.This flour mesh is made of mono filament and double filament and the inter weave double filament make the mesh surface much more coarse and therefore improve the screening effect.
PA-XXX series has the highest tension during nylon flour mesh.Because it woven with the thicker threads to reduce the opening area.which make it has long service life.
Specification:
| Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
| NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
| JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
| JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
| JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
| JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
| JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
| JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
| JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
| JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
| 12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
| JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
| JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
| 16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
| JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
| 20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
| JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
| JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
| JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 | |
Packing and Delivery

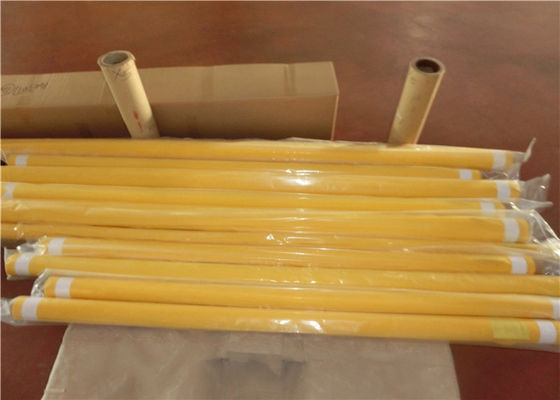

Packing:Plastic bag on one roll inside and carton box outside
Delivery:After receiving 50% advanced payment,we will arrange to producing and the goods will be shipped within 8days..
![]()
![]()
![]()
