| Name: | Heat Resistance 100% Polyester Mesh Belt For Paper Pulp Washing | Color: | White, Blue, Red |
|---|---|---|---|
| Keyword: | Polyester Mesh Belt | Application: | Sludge Dewatering Belt |
| Material: | 100%Polyester | Joint: | Endless,Steel-clip,Spiral Ring |
| Highlight: | plain weave mesh,woven mesh fabric |
||

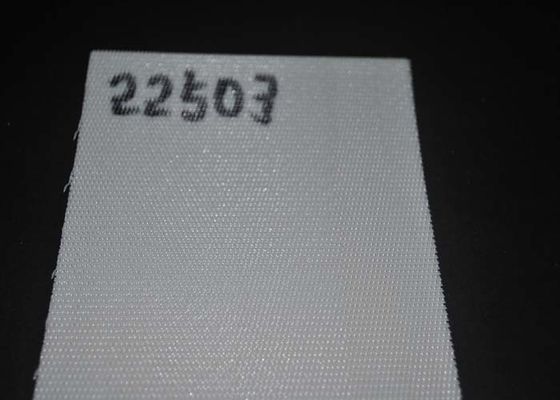

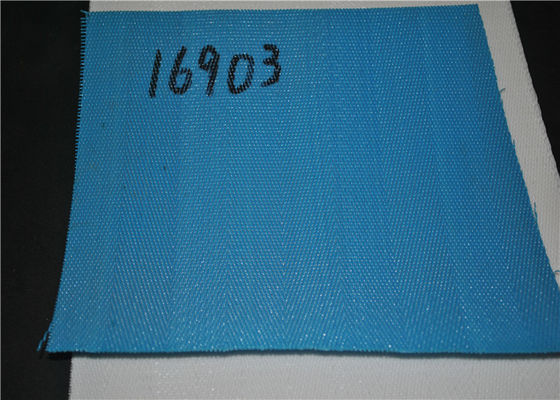

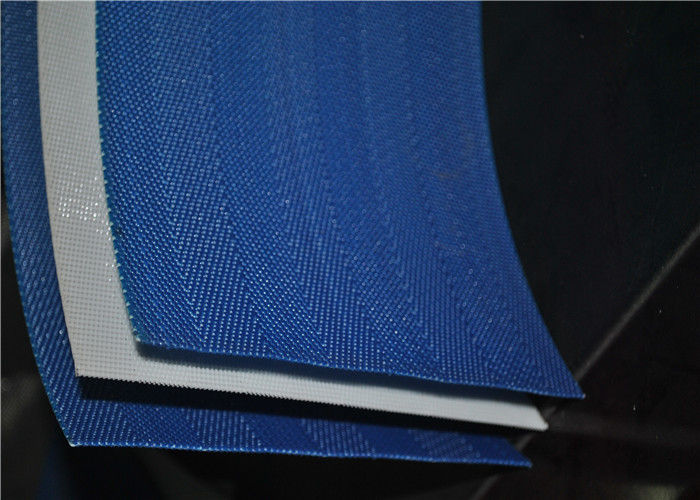

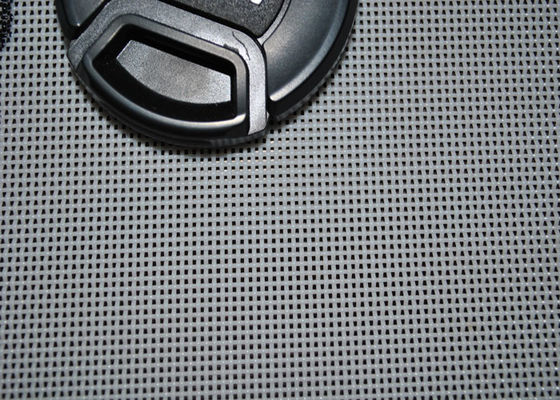

Heat Resistance 100% Polyester Mesh Belt For Paper Pulp Washing
Polyester Mesh Belt Feature:
Polyester Mesh Belt Description:
This kind of polyester mesh belt is specially designed for waste water treatment systems as a sludge dewatering belt. Sludge dewatering belt is mainly used for belt type press filter,rubber belt vacuum filter,
horizontal belt vacuum filter,especially for the drying process in paper milll, also used at critical
stages of particle board, medium density fibreboard (MDF), manufacture of ceiling tiles, etc.Sludge dewatering belt is made of round or flat threads,excellent permeation of air and water while keeping out the sludge, Applicable to the municipal sewage sludge,sludge filtrationenterprises,press paper mill pulp,the use of concentrated fruit juice squeezing and other special industry.Due to its unique structure,the sludge is easy to peel off and clean after the sludge is pressed and filtered,not sticky mud.
Polyester Mesh Belt Advantage:
Polyester Mesh Belt Application:
Polyester mesh belt can be used to sludge dewatering treating system, squeeze juice,Iron and steel industry sludge dewatering,Living water dewatering,Chemical sludge dewatering,Paper drying ,Paper sludge dewatering,Industrial sludge dewatering,Building materials industry,Pulp Washing
Polyester Mesh Belt Specification:
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in | ||
| Wrap | Weft | Wrap | Weft | |||||
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge,Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge,Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | 650 | 94 | Paper pulp washing | |
