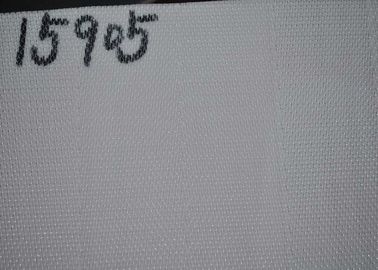

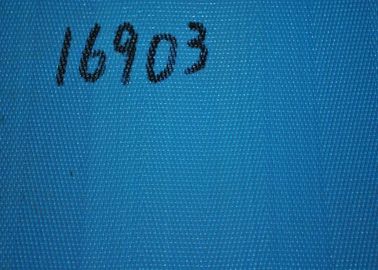

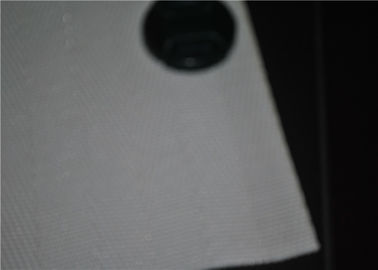

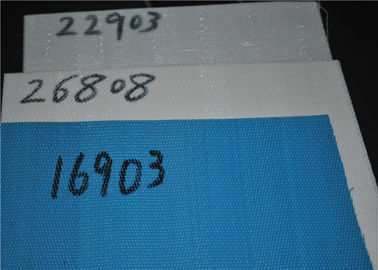

Heat Resistance 100% Polyester Mesh Belt For Paper Drying Industry

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Heat Resistance 100% Polyester Mesh Belt For Paper Drying Industry

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: Plastic bag inside and plywood case outside or according to your need.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade assurance
Detailed Product Description
Name: Acid-resisting 100%Polyester Mesh Belt Durable For Paper Sludge Dewatering Color: White, Blue, Red
Keyword: Polyester Mesh Belt Application: Sludge Dewatering Belt
Material: 100%Polyester Joint: Endless,Steel-clip,Spiral Ring
High Light:

mesh material fabric


plain weave mesh

Heat Resistance 100%Polyester Mesh Belt Uesd For Paper Drying Industry




Polyester Mesh Belt Description:


      This kind of polyester mesh belt is specially designed for waste water treatment systems as a sludge dewatering belt. Sludge dewatering belt is mainly used for belt type press filter,rubber belt vacuum filter,

horizontal belt vacuum filter,especially for the drying process in paper milll, also used at critical

stages of particle board, medium density fibreboard (MDF), manufacture of ceiling tiles, etc.Sludge dewatering belt is made of round or flat threads,excellent permeation of air and water while keeping out the sludge, Applicable to the municipal sewage sludge,sludge filtrationenterprises,press paper mill pulp,the use of concentrated fruit juice squeezing and other special industry.Due to its unique structure,the sludge is easy to peel off and clean after the sludge is pressed and filtered,not sticky mud.


Polyester Mesh Belt Advantage:


The polyester mesh belt has good water permeability,air permeability,non-revealed sludge,acid-resisting,alkali-resisting,heat resistance(180 degree)


Polyester Mesh Belt Application:


Polyester mesh belt can be used to sludge dewatering treating system, squeeze juice,Iron and steel industry sludge dewatering,Living water dewatering,Chemical sludge dewatering,Paper drying ,Paper sludge dewatering,Industrial sludge dewatering,Building materials industry,Pulp Washing


Polyester Mesh Belt Specification:


Model Wire Diameter Density Root/10cm Air Permeability m3/m2h Net Weight g/m2 Strength kg/cm Used in
Wrap Weft Wrap Weft
14803 0.7 0.8 142 47-60 3900-8500 1400 240 Sludge,Squeeze juice
16803 0.7 0.8 156 46-50 6000 1400 265 Sludge,Squeeze juice
16904 0.75 0.9 156 47 8000 1800 280 Iron and steel industry sludge dewatering Living slude dewatering
121054 0.9 1.05 120 42 8000 1650 340 Iron and steel industry sludge dewatering
22903 0.5 0.9 220 50-55 9000 1200 200 Living slude dewatering
20703 0.5 0.7 200 70 10000 1000 185 Living slude dewatering
24504 0.5 0.5 240 130-140 8500 1180 220 Paper dry network
8903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
16704 0.7 0.7 160 90 12000 1350 165 Building materials dewatering
26908 0.5 0.9 26.4 69-75 5000 1364 240 Viscosit of the larger
12 Mesh 0.75 0.8 47 48   650 94 Paper pulp washing


Heat Resistance 100% Polyester Mesh Belt For Paper Drying Industry 0
