Product Details:
Payment & Shipping Terms:
|
Color: | White,Blue,Red | Technics: | Woven Mesh |
---|---|---|---|
Name: | 100%Polyester Mesh Belt Linear Wire Mesh For Industry Conveyor | Hot Search: | Polyester Mesh Belt |
Feature: | Waterproof | Keyword: | Polyeste Mesh Belt |
High Light: | plain weave mesh,woven mesh fabric |

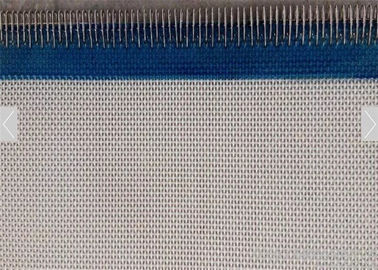

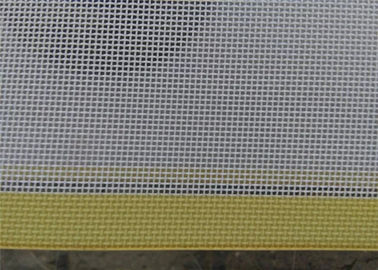

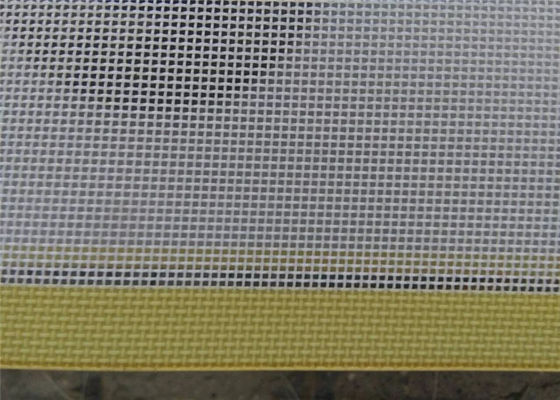

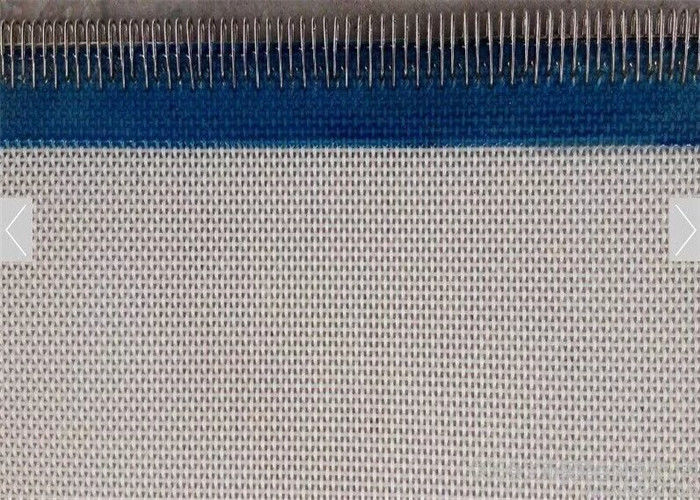

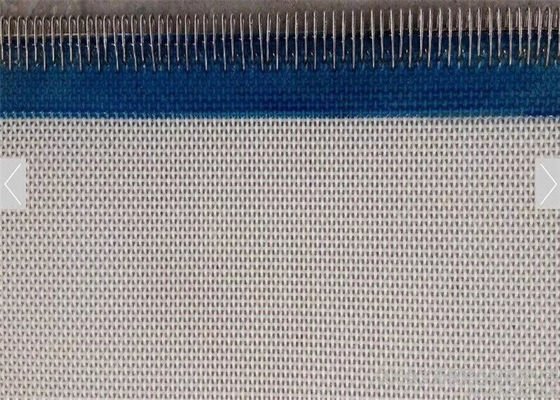

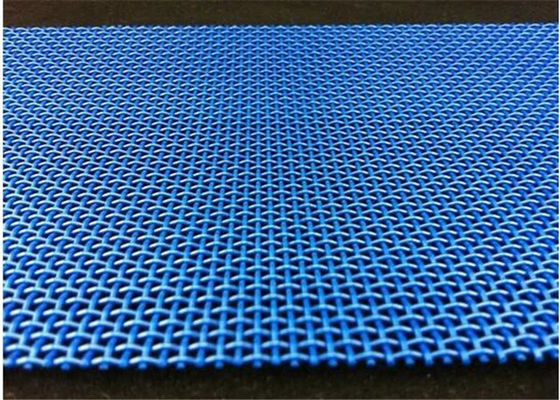

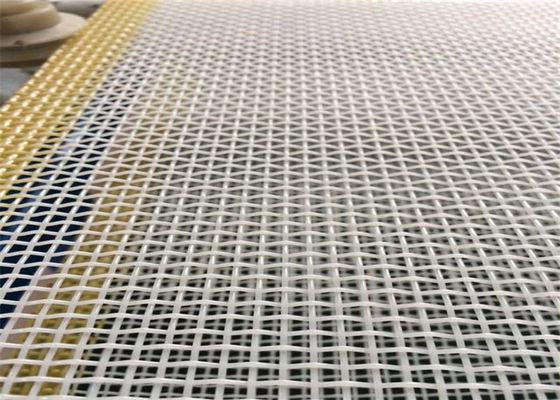

Smooth Surface 100%Polyester Mesh Belt For Industry Food Conveyor
Application of polyester mesh belt:
1. Separation in solid and liquid to equip with filter press
2. conveyor belts filtration machine
3. Filter Leaf ,
4. Horizontal Rotating Pan Filter ,Vacuum filter
5. in Chemical industry ,Fertilizer industry
6. Sugar making ,
7. food and beverage ,metallurgy
8. Building ,Waste water dealing ,and so on .
Description of polyester mesh belt:
Specification of polyester mesh belt:
Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
(mm) | |||||||
Warp | Weft | Warp | Weft | ||||
2-shed plain weaving | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 |
Advantage of polyester mesh belt:
Shipping of polyester mesh belt:
Service:
1. Samples: free samples with detail specification for you to choose.
2. We will make the exact specifications as customer's requirements
3. Felt and fabric design solution will be provided within 24 hours By Technician Department.
4. There is a Strict quality control process during each production step .Ensuring the quality.
