| Product Name: | 40 Micron Wire Cloth Black Polyester Filter Mesh Screen,for Ear Speaker | Material: | 100% Polyester Monofilament |
|---|---|---|---|
| Features: | Black Treatment,uniform Aperture Size | Applications: | Micron Filtering Material,dusty Filter Material |
| Mesh Count Per Inch: | 380 Mesh | Opening Size: | 40 Micron |
| Thickness: | 55 Micron | Width: | 105-110cm |
| Hot Search 1: | Polyester Mesh | Hot Search 2: | Micron Black Mesh |
| Hot Search 3: | Monofilament Polyester Filter Mesh | ||
| High Light: | mesh screen fabric,poly mesh fabric |
||

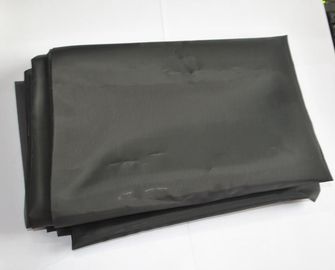

40 Micron Wire Cloth Black Polyester Filter Mesh Screen For Ear Speaker
Features of 40 micron Wire Cloth Black Polyester Filter Mesh Screen,for ear speaker:
Application:
Black polyester mesh monofilament is widely used placed where micron filtering material,ear speeker.
Specifications of micron polyester 380 mesh black:
| width | 105-115cm |
| mesh count per inch | 380 |
| opening size | 38-40 micron |
| opening shape | square |
PFM screen also supply other kinds of meshes in different mesh from 100 mesh to 500 mesh count per inch,specifications of polyester mesh is as following:
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) |
| 15 | 6 | 400 | 1270 | 64 | 720 |
| 18 | 7 | 350 | 1078 | 64 | 640 |
| 20 | 8 | 300 | 950 | 58 | 550 |
| 25 | 10 | 250 | 750 | 56 | 620 |
| 30 | 12 | 250 | 583 | 49 | 450 |
| 30 | 12 | 150 | 683 | 67 | 300 |
| 40 | 16 | 200 | 425 | 46 | 400 |
| 50 | 20 | 80 | 420 | 71 | 120 |
| 50 | 20 | 150 | 350 | 49 | 260 |
| 60 | 24 | 100 | 316 | 58 | 136 |
| 60 | 24 | 120 | 297 | 50 | 240 |
| 73 | 29 | 120 | 225 | 43 | 240 |
| 80 | 32 | 64 | 248 | 63 | 95 |
| 80 | 32 | 100 | 212 | 46 | 200 |
| 85 | 34 | 100 | 195 | 44 | 221 |
| 90 | 36 | 100 | 178 | 41 | 216 |
| 100 | 39 | 55 | 200 | 61 | 88 |
| 100 | 39 | 80 | 176 | 47 | 150 |
| 110 | 43 | 80 | 153 | 43 | 130 |
| 120 | 47 | 55 | 158 | 55 | 88 |
| 120 | 47 | 71 | 142 | 44 | 135 |
| 135 | 53 | 55 | 133 | 50 | 86 |
| 135 | 53 | 64 | 125 | 44 | 100 |
| 150 | 59 | 64 | 105 | 38 | 100 |
| 160 | 64 | 55 | 101 | 42 | 98 |
| 160 | 64 | 64 | 92 | 35 | 120 |
| 180 | 72 | 48 | 91 | 43 | 78 |
| 180 | 72 | 55 | 84 | 37 | 100 |
| 200 | 80 | 48 | 77 | 38 | 74 |
| 195 | 77 | 55 | 75 | 33 | 105 |
| 230 | 90 | 48 | 63 | 33 | 85 |
| 250 | 100 | 40 | 60 | 36 | 70 |
| 280 | 110 | 40 | 51 | 31 | 85 |
| 305 | 120 | 40 | 43 | 27 | 68 |
| 355 | 140 | 34 | 37 | 27 | 58 |
| 380 | 150 | 31 | 36 | 29 | 46 |
| 420 | 165 | 31 | 30 | 24 | 46 |
| 460 | 180 | 27 | 28 | 26 | 56 |
| 500 | 200 | 27 | 23 | 25 | 45 |
Why choose us as your supplier,then friend?
we do supply the same quality with the sample ,which is sent to our customer before big order,and more,help our customer do quality testing before shipping goods,such as measure the opening size,the thickness ,width and send video of waterproof treatment quality to you.Process from production to shipping of every order is treated carefully .
goods quality is out company`s spirit!
We welcome you send us inquiry and visit our factory.
PFM factory has 83 sets P7100&P7150 Sulzer polyester monofilament mesh weaving looms
Hung stocks make sure delivery micron polyester filter mesh in time.
quality testing before shipping and packing
